DIN rail-mounted terminal block TP2.5-3-1-PE
springpush-incopper

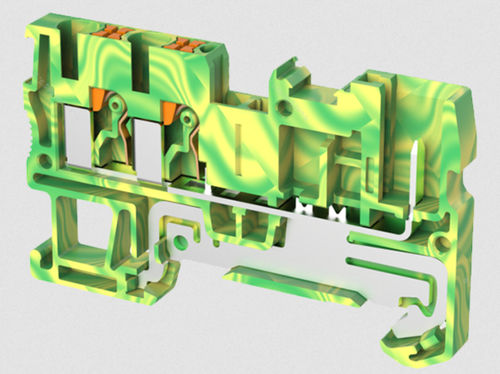

DIN rail-mounted terminal block - TP2.5-3-1-PE - Ningbo SUPU Electronics Co., Ltd. - spring / push-in / copper
DIN rail-mounted terminal block - TP2.5-3-1-PE - Ningbo SUPU Electronics Co., Ltd. - spring / push-in / copper
DIN rail-mounted terminal block - TP2.5-3-1-PE - Ningbo SUPU Electronics Co., Ltd. - spring / push-in / copper - image - 2
Add to favorites
Compare this product

Characteristics

Mounting
DIN rail-mounted
Connection
push-in, spring
Other characteristics
IEC, copper
Cross-section

Min.: 0.2 mm²
(0 in²)

Max.: 4 mm²
(0.01 in²)

Description

Connection method:Push-in connection,Number of connections:3,Number of levels：1,Cross section:26-12AWG Parameters Width 5.2mm Number of levels 1 Number of connections 3 Connection method Push-in connection Protection Level IP20 Insulation material PA66 Insulation material group Ⅰ Contact material Copper alloy Contact plating Sn,Plated Ambient temperature (operation) -40℃～105℃ Ambient temperature (assembly) -5℃～70℃ Ambient temperature (storage) -25℃～60℃ Permissible humidity (storage/transport) 30%～70% Technical data IEC Rated Current / IEC Rated Voltage / Overvoltage category Ⅲ Degree of pollution 3 Rated impulse voltage 8KV UL Rated Current / UL Rated Voltage / Stripping length 8-10mm Use group / Rated cross section 26-12AWG
