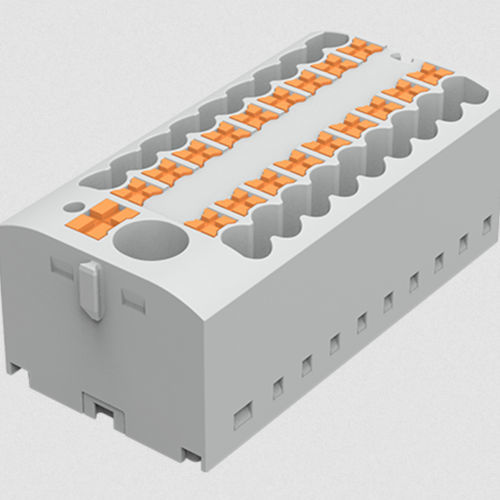

Power distribution block TPA6/2.5-19-GY

Connection method:Push-in connection，Rated Current:24A，Rated Voltage:450V，Number of connections：19，Number of levels：1，Cross section:0.2-4mm²，AWG:26-12AWG Parameters Number of levels 1 Number of connections 19 Connection method Push-in connection Protection Level IP20 Insulation material PA66 Insulation material group Ⅰ Contact material Copper alloy Contact plating Sn,Plated Ambient temperature (operation) -40℃～105℃ Ambient temperature (assembly) -5℃～70℃ Ambient temperature (storage) -25℃～60℃ Permissible humidity (storage/transport) 30%～70% Potentials 1 Technical data IEC Rated Current 24A IEC Rated Voltage 450V Overvoltage category Ⅲ Degree of pollution 3 Rated impulse voltage 6KV UL Rated Current 20A UL Rated Voltage 300V Conductor cross section rigid 0.2-4mm² Conductor cross section flexible 0.2-2.5mm² Conductor cross section flexible,with furrule 0.2-2.5mm² Stripping length 8-10mm Use group B/C Rated cross section 26-12AWG
