- Electricity - Electronics
- Cable, Connector, Enclosure
- DIN rail-mounted terminal block
- Ningbo SUPU Electronics Co., Ltd.

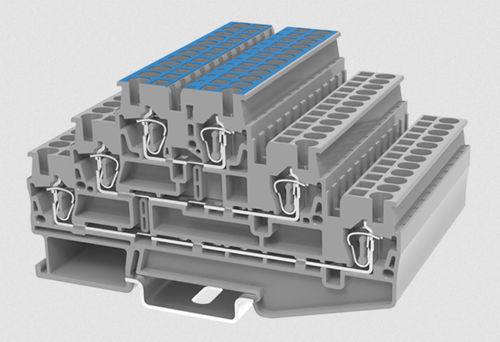

DIN rail-mounted terminal block TCT2.5-2-GY-Nspring cage connectioncopperIEC
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- spring cage connection
- Other characteristics
- IEC, copper
- Current
22 A
- Nominal voltage
500 V
Description
Connection method:Spring cage connection,IEC Rated Current:22A,IEC Rated Voltage:500V,Number of connections:6,Number of levels:3,Rated cross section:28-12AWG
Parameters
Width
5.2mm
Number of levels
3
Number of connections
6
Connection method
Spring-cage connection
Insulation material
PA66
Insulation material group
Ⅰ
Contact material
Copper alloy
Contact plating
Sn,Plated
Ambient temperature (operation)
-40℃～105℃
Ambient temperature (assembly)
-5℃～70℃
Ambient temperature (storage)
-25℃～60℃
Permissible humidity (storage/transport)
30%～70%
