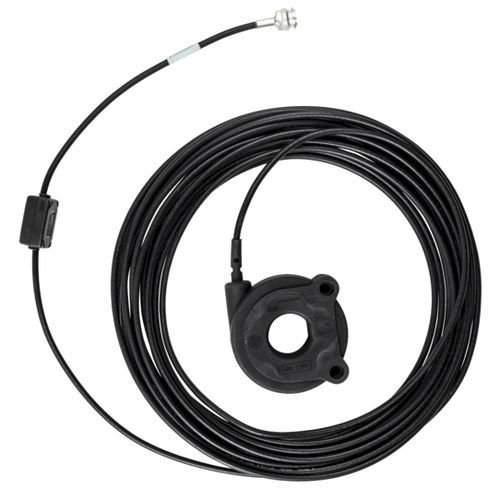

Current transformer MCT 085

measurementdryindustrial

High-frequency current transformer for medium-voltage power cables The MCT 085 high-frequency current transformer (HFCT) is specifically designed for offline or online partial discharge (PD) measurement on medium-voltage (MV) cables. It is primarily intended for use on ground connections. The MCT 085 has a ferrite core with a diameter of > 28.5 mm (> 1.12 inches), which allows it to be placed around the grounding braid of the MV cable. The MCT 085 has a very high sensitivity in a wide frequency range and therefore a very good signal-to-noise-ratio. The MCT 085 can be mounted directly at the medium-voltage cable using suitable fastenings. The MCT 085 communicates with the measuring device via a 10 m (32.80 feet) long coaxial cable. The MPC 085 HFCT can be used as an accessory with our MPD 800 universal PD measurement and analysis system as well as our MONTESTO 200 portable temporary PD monitoring system. Key features • Designed for offline or online PD measurement on medium-voltage (MV) cables • Multiple mounting possibilities at the measurement site • High sensitivity in a wide frequency range for a very good signal-to-noise-ratio • Intended for use with MPD 800 and MONTESTO 200 systems Applications • Offline and online PD measurements on medium-voltage cables
