IP68 cable joint OTG series

polyamidestraight

Product

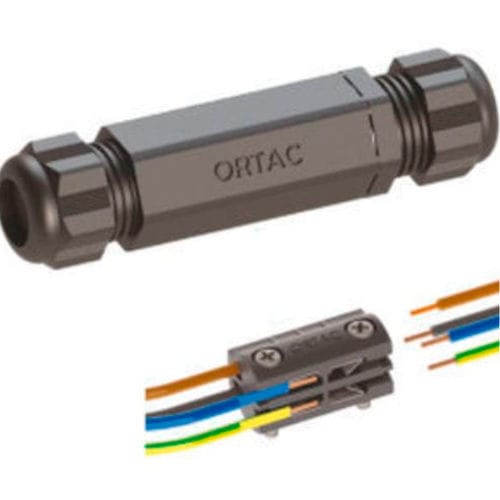

Tubegland TBT is a metric-thread cable joint for M25 installations designed to provide IP68 (5 bar) sealing with options for a separator or inner terminal. Constructed in polyamide PA6 with stainless steel internal parts, it supports 4-pin connections and a wide range of cable diameters.

Materials and Components

• Cap nut: Polyamide PA6 V2
• Sealing ring: TPV
• Gland body: Polyamide PA6 V2
• Body: Polyamide PA6 V2
• Separator: Polyamide PA6 V2
• Inner terminal: Polyamide PA6 V2
• O-ring: NBR

Performance & Ratings

• Connection thread: Metric (EN 60423)
• Protection class: IP68 (5 bar)
• Operating temperature (standard): -20 °C to +100 °C
• Short-term temperature: -30 °C to +150 °C
• Benefits: UV resistance on request; wide cable range; easy assembly; halogen free

Product Codes and Applications

• Product code: TBT
• Inside material: Stainless Steel
• Available cable diameters (mm): 0.5 / 0.75 / 1 / 1.5 / 2
• Available configuration: 4-pin
• Typical application areas: Automotive, lighting industry, LED technologies

Technical Data - Dimensions

• M25 x 1.5 — OTG 01 / OTGT 01: L1 127 mm; L2 93.5 mm; D 32.6 mm; Wrench 29 mm; A 11–17 mm; B 11–17 mm
• M25 x 1.5 — OTG 02 / OTGT 02: L1 127 mm; L2 93.5 mm; D 32.6 mm; Wrench 29 mm; A 11–17 mm; B 13–18 mm
• M25 x 1.5 — OTG 03 / OTGT 03: L1 127 mm; L2 93.5 mm; D 32.6 mm; Wrench 29 mm; A 11–17 mm; B 9–14 mm
• M25 x 1.5 — OTG 04 / OTGT 04: L1 127 mm; L2 93.5 mm; D 32.6 mm; Wrench 29 mm; A 11–17 mm; B 9–16 mm
• M25 x 1.5 — OTG 05 / OTGT 05: L1 127 mm; L2 93.5 mm; D 32.6 mm; Wrench 29 mm; A 11–17 mm; B 6–12 mm
• M25 x 1.5 — OTG 06 / OTGT 06: L1 127 mm; L2 93.5 mm; D 32.6 mm; Wrench 29 mm; A 9–14 mm; B 9–14 mm
• M25 x 1.5 — OTG 07 / OTGT 07: L1 127 mm; L2 93.5 mm; D 32.6 mm; Wrench 29 mm; A 11–17 mm; B 4–10 mm
• M25 x 1.5 — OTG 08 / OTGT 08: L1 127 mm; L2 93.5 mm; D 32.6 mm; Wrench 29 mm; A 9–14 mm; B 4–10 mm
• M25 x 1.5 — OTG 09 / OTGT 09: L1 127 mm; L2 93.5 mm; D 32.6 mm; Wrench 29 mm; A 9–14 mm; B 6–12 mm
• M25 x 1.5 — OTG 10 / OTGT 10: L1 127 mm; L2 93.5 mm; D 32.6 mm; Wrench 29 mm; A 9–14 mm; B 9–16 mm
• M25 x 1.5 — OTG 11 / OTGT 11: L1 127 mm; L2 93.5 mm; D 32.6 mm; Wrench 29 mm; A 9–14 mm; B 13–18 mm
• M25 x 1.5 — OTG 12 / OTGT 12: L1 127 mm; L2 93.5 mm; D 32.6 mm; Wrench 29 mm; A 9–14 mm; B 11–17 mm

Characteristics / Technical specifications

• Cap nut material: Polyamide PA6 V2
• Sealing ring material: TPV
• Gland body material: Polyamide PA6 V2
• Body material: Polyamide PA6 V2
• Separator material: Polyamide PA6 V2
• Inner terminal material: Polyamide PA6 V2
• O-ring material: NBR
• Thread standard: Metric (EN 60423)
• Protection rating: IP68 (5 bar)
• Operating temperature: -20 °C to +100 °C (standard)
• Short-term temperature: -30 °C to +150 °C
• Product code: TBT
• Main material: Polyamide 6
• Inside material: Stainless Steel
• Available cable cross-sections (mm): 0.5 / 0.75 / 1 / 1.5 / 2
• Available configuration: 4-pin
• Application areas: Automotive, lighting industry, LED technologies
