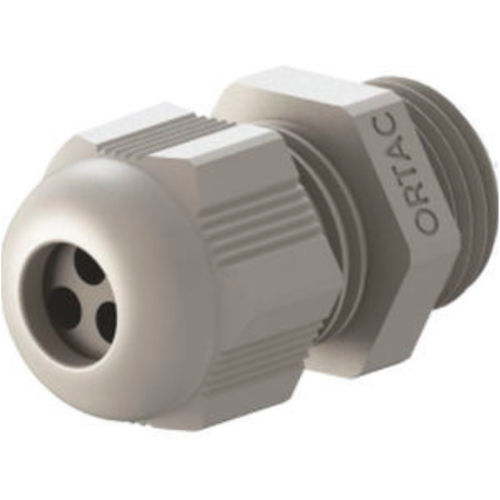

Polyamide cable gland ORG 02A3

PAPA6vibration-resistant

Overview
Polyamide cable glands for multihole and flathole applications with PG thread (DIN 40430). Designed for multi-conductor or flat cables, providing antivibration protection and manufactured from halogen-free material. Rated IP65.

Materials and basic construction
Cap nut : Polyamide PA6 V2
Sealing ring : TPV special seal for multi / flat cables
Gland body : Polyamide PA6 V2

Key characteristics

• Connection thread: PG (DIN 40430)
• Protection class: IP65
• Temperature range: -20 °C to +100 °C; short-term up to -30 °C to +150 °C (short-term heat resistance)
• Suitable for multi-conductor or flat cables
• Antivibration protection
• UV resistance (on request)
• Easy to assemble
• Halogen free

Technical Data (PG Thread Cable Glands)
Header: AG Thread | Gray Code (RAL 7001) | L. Gray Code (RAL 7035) | Black Code (RAL 9005) | Number of holes (mm) | C (mm)
PG 9 | ORG 02A3 | ORL 02A3 | ORB 02A3 | 2 | 3
PG 9 | ORG 02B3 | ORL 02B3 | ORB 02B3 | 3 | 3
PG 9 | ORG 02C3 | ORL 02C3 | ORB 02C3 | 4 | 3
PG 11 | ORG 03A4 | ORL 03A4 | ORB 03A4 | 2 | 4
PG 11 | ORG 03A5 | ORL 03A5 | ORB 03A5 | 2 | 5
PG 11 | ORG 03B4 | ORL 03B4 | ORB 03B4 | 3 | 4
PG 11 | ORG 03B5 | ORL 03B5 | ORB 03B5 | 3 | 5
PG 13,5 | ORG 04A5 | ORL 04A5 | ORB 04A5 | 2 | 5
PG 13,5 | ORG 04A6 | ORL 04A6 | ORB 04A6 | 2 | 6
PG 13,5 | ORG 04B4 | ORL 04B4 | ORB 04B4 | 3 | 4
PG 13,5 | ORG 04B5 | ORL 04B5 | ORB 04B5 | 3 | 5
PG 16 | ORG 05A4 | ORL 05A4 | ORB 05A4 | 2 | 4
PG 16 | ORG 05A7 | ORL 05A7 | ORB 05A7 | 2 | 7
PG 16 | ORG 05B4 | ORL 05B4 | ORB 05B4 | 3 | 4
PG 16 | ORG 05B6 | ORL 05B6 | ORB 05B6 | 3 | 6
PG 16 | ORG 05C5 | ORL 05C5 | ORB 05C5 | 4 | 5
PG 21 | ORG 06A8 | ORL 06A8 | ORB 06A8 | 2 | 8
PG 21 | ORG 06A9 | ORL 06A9 | ORB 06A9 | 2 | 9
PG 21 | ORG 06B5 | ORL 06B5 | ORB 06B5 | 3 | 5
PG 21 | ORG 06B7 | ORL 06B7 | ORB 06B7 | 3 | 7
PG 21 | ORG 06B8 | ORL 06B8 | ORB 06B8 | 3 | 8
PG 21 | ORG 06C7 | ORL 06C7 | ORB 06C7 | 4 | 7
PG 21 | ORG 06G3 | ORL 06G3 | ORB 06G3 | 8 | 3
PG 21 | ORG 06G4 | ORL 06G4 | ORB 06G4 | 8 | 4
PG 29 | ORG 07C9 | ORL 07C9 | ORB 07C9 | 4 | 9
PG 29 | ORG 0703 | ORL 0703 | ORB 0703 | 16 | 3
PG 36 | ORG 08E8 | ORL 08E8 | ORB 08E8 | 6 | 8

Technical Data (Flathole PG Cable Glands)
Header: PG | Gray (YRG) | L.Gray (YRL) | Black (YRB) | A (mm) | B (mm)
PG 16 | YRG 05 | YRL 05 | YRB 05 | 7 | 13
PG 21 | YRG 06 | YRL 06 | YRB 06 | 5 | 17
PG 29 | YRG 07 | YRL 07 | YRB 07 | 8 | 22
PG 36 | YRG 08 | YRL 08 | YRB 08 | 10 | 28
PG 36 | YRG 08A | YRL 08A | YRB 08A | 5,5 | 28
PG 42 | YRG 09 | YRL 09 | YRB 09 | 12 | 33

Characteristics / technical specifications

• Cap nut: Polyamide PA6 V2
• Gland body: Polyamide PA6 V2
• Sealing ring: TPV special seal for multi / flat cables
• Connection thread: PG (DIN 40430)
• Protection class: IP65
• Temperature range: -20 °C to +100 °C; short-term up to -30 °C to +150 °C
• Materials: halogen free
• Features: antivibration protection, UV resistance (on request), easy assembly
• Available color codes: Gray RAL 7001, Light Gray RAL 7035, Black RAL 9005
