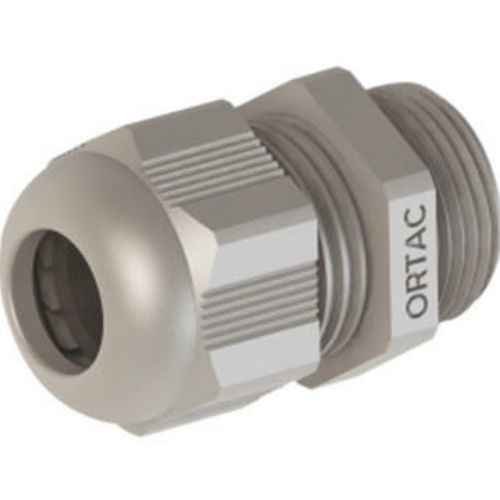

Polyamide cable gland OMRG E06

PA6IP68halogen-free

Product overview
Reduced (reduced-entry) polyamide cable glands from the ES series for Euro-metric installations. Cap nut and gland body in Polyamide PA6 V2 with a TPV special sealing ring for enhanced dust resistance. Designed for M25 x 1.5 metric threads (EN 60423). Rated IP68 (5 bar) with O-ring; suitable for a wide range of cable diameters in compact entries.

Key technical data - Reduced Euro metric

• M25 x 1.5 — OMRG / OMRL / OMRB ES4: clamping range 4–10 mm (H 32 mm, G 10 mm, wrench 29 mm)
• M25 x 1.5 — OMRG / OMRL / OMRB ES6: clamping range 6–12 mm (H 32 mm, G 10 mm, wrench 29 mm)
• M25 x 1.5 — OMRG / OMRL / OMRB ES14: clamping range 4–10 mm (H 32 mm, G 15 mm, wrench 29 mm)
• M25 x 1.5 — OMRG / OMRL / OMRB ES16: clamping range 6–12 mm (H 32 mm, G 15 mm, wrench 29 mm)

Applications & compatibility

• Compact cable entries for control cabinets, junction boxes and electrical enclosures
• Machine and automation installations where space is limited
• Environments with vibration — antivibration clamping design
• Outdoor or UV-exposed installations (UV resistance available on request)

Standards & performance

• Material (cap nut, gland body): Polyamide PA6 V2
• Sealing ring: TPV special seal for dust resistance
• Connection thread standard: Metric (EN 60423)
• Protection class: IP68, 5 bar (with O-ring)
• Temperature range: cap nut/gland body approx. -20 °C to +100 °C; sealing ring approx. -30 °C to +150 °C
• Halogen free

Ordering & options

• Available color/codes: Gray (OMRG), Light Gray (OMRL), Black (OMRB)
• Design codes and clamping ranges as per technical data (ES series for reduced metric)
• UV resistance available on request; easy assembly
