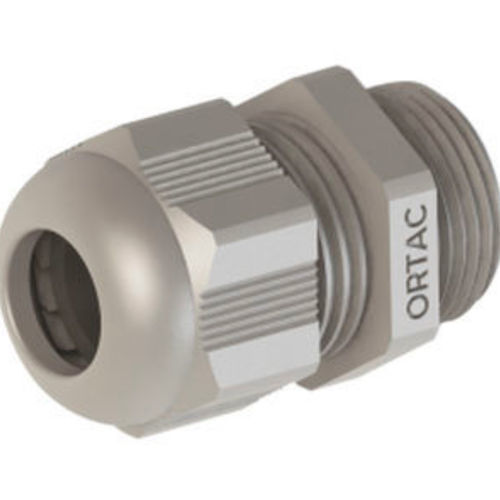

Polyamide cable gland OMRV series

PAPA6vibration-resistant

Overview
Polyamide cable glands with fire protection class V0 according to UL94. Available for Metric (EN 60423) and PG (DIN 40430) connection threads. Designed for IP68 5 bar (with O-ring), antivibration applications, halogen-free construction and straightforward assembly. UV-resistant versions available on request.

Materials

• Cap nut: Polyamide PA6 V0-UL94
• Sealing ring: TPV
• Gland body: Polyamide PA6 V0-UL94

Key properties

• Fire protection class V0 according to UL94
• Protection class: IP68 5 bar (with O-ring)
• Antivibration protection
• UV resistance available on request
• Easy to assemble
• Halogen free
• Temperature range options shown in technical data

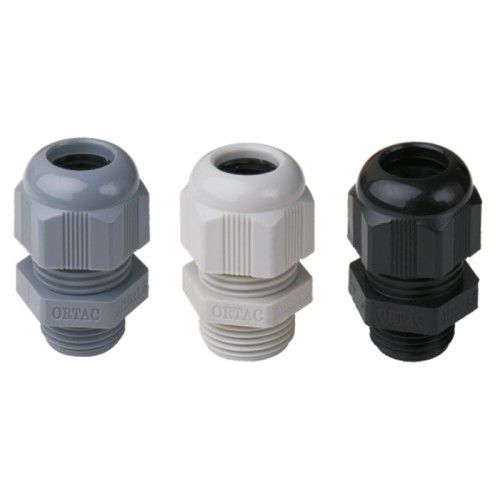

• Available in multiple thread sizes and color codes (Gray RAL 7001, L. Gray RAL 7035, Black RAL 9005)

Technical Data
Metric / PG thread cable glands table (columns: Thread | Gray Code (RAL 7001) | L. Gray Code (RAL 7035) | Black Code (RAL 9005) | H mm | GL mm | Wrench mm | Clamping Range mm):
M 12 x 1,5 | OMRGV 01 | OMRLV 01 | OMRBV 01 | 24 | 8 | 15 | 3 - 6,5
M 16 x 1,5 | OMRGV 02 | OMRLV 02 | OMRBV 02 | 28 | 8 | 19 | 4 - 8
M 16 x 1,5 | OMRGV 03 | OMRLV 03 | OMRBV 03 | 29 | 10 | 22 | 5 - 10
M 20 x 1,5 | OMRGV 04RS | OMRLV 04RS | OMRBV 04RS | 29 | 10 | 24 | 4 - 10
M 20 x 1,5 | OMRGV 04 | OMRLV 04 | OMRBV 04 | 29 | 10 | 24 | 6 - 12
M 20 x 1,5 | OMRGV 05 | OMRLV 05 | OMRBV 05 | 33 | 10 | 27 | 10 - 14
M 25 x 1,5 | OMRGV 06RS | OMRLV 06RS | OMRBV 06RS | 38 | 10 | 33 | 9 - 17
M 25 x 1,5 | OMRGV 06 | OMRLV 06 | OMRBV 06 | 38 | 10 | 33 | 13 - 18
M 32 x 1,5 | OMRGV 07 | OMRLV 07 | OMRBV 07 | 41 | 10 | 42 | 18 - 25
M 40 x 1,5 | OMRGV 08 | OMRLV 08 | OMRBV 08 | 51 | 10 | 53 | 22 - 32
M 50 x 1,5 | OMRGV 09 | OMRLV 09 | OMRLV 09 | 53 | 18 | 60 | 30 - 38
M 63 x 1,5 | OMRGV 10 | OMRLV 10 | OMRBV 10 | 55 | 18 | 65 | 34 - 44

PG thread variants (columns: Thread | OR Gray Code | OR L. Gray Code | OR Black Code | H mm | GL mm | Wrench mm | Clamping Range mm):
PG 7 | ORGV 01 | ORLV 01 | ORBV 01 | 24 | 8 | 15 | 3 - 6,5
PG 9 | ORGV 02 | ORLV 02 | ORBV 02 | 28 | 8 | 19 | 4 - 8
PG 11 | ORGV 03 | ORLV 03 | ORBV 03 | 29 | 8 | 22 | 5 - 10
PG 13,5 | ORGV 04RS | ORLV 04RS | ORBV 04RS | 29 | 9 | 24 | 4 - 10
PG 13,5 | ORGV 04 | ORLV 04 | ORBV 04 | 29 | 9 | 24 | 6 - 12
PG 16 | ORGV 05 | ORLV 05 | ORBV 05 | 33 | 9 | 27 | 10 - 14
PG 21 | ORGV 06RS | ORLV 06RS | ORBV 06RS | 38 | 11 | 33 | 9 - 17
PG 21 | ORGV 06 | ORLV 06 | ORBV 06 | 38 | 11 | 33 | 13 - 18
PG 29 | ORGV 07 | ORLV 07 | ORBV 07 | 41 | 11 | 42 | 18 - 25
PG 36 | ORGV 08 | ORLV 08 | ORBV 08 | 51 | 13 | 53 | 22 - 32
PG 42 | ORGV 09 | ORLV 09 | ORBV 09 | 53 | 13 | 60 | 30 - 38
PG 48 | ORGV 10 | ORLV 10 | ORBV 10 | 55 | 14 | 65 | 34 - 44

Technical specifications

• Cap nut: Polyamide PA6 V0-UL94
• Sealing ring: TPV
• Gland body: Polyamide PA6 V0-UL94
• Connection thread: Metric (EN 60423) / PG (DIN 40430)
• Protection class: IP68 5 bar (with O-ring)
• Temperature range examples: +100 °C / -30 °C or +150 °C as presented in technical data
• Fire protection: V0 according to UL94
• Antivibration protection
• UV resistance available on request
• Easy to assemble
• Halogen free
• Available in multiple thread sizes and color codes (Gray RAL 7001, L. Gray RAL 7035, Black RAL 9005) with specific clamping ranges listed in technical data
