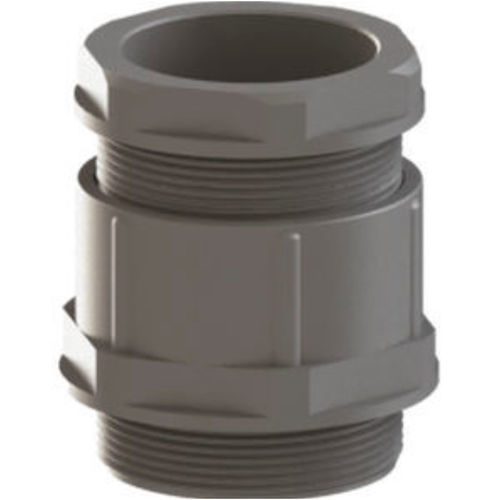

Polyamide cable gland KMRG 17

PA6IP54metric

Product name
Polyamide cable glands, flat closed-seal type for dust-resistant cable entry and strain relief in electrical enclosures. Available in metric and PG thread series with multiple clamping ranges and color codes.

Composition / Main components

• Cap nut: Polyamide PA6 V2 (optionally reinforced PA6 V2 + 30% GF)
• Sealing ring: TPV
• Washer: Polystyrene
• Gland body: Polyamide PA6 V2
• Connection thread: Metric (EN 60423) and PG (DIN 40430) options

Technical data (threads, codes and dimensions)
M 12 x 1,5 — Gray Code: KMRG 17 — L. Gray Code: KMRL 17 — Black Code: KMRB 17 — H (mm): 21 — GL (mm): 8 — Wrench (mm): 15 — Clamping Range (mm): 3,5 - 6
M 16 x 1,5 — Gray Code: KMRG 18 — L. Gray Code: KMRL 18 — Black Code: KMRB 18 — H (mm): 22 — GL (mm): 8 — Wrench (mm): 19 — Clamping Range (mm): 4,5 - 7
M 16 x 1,5 — Gray Code: KMRG 19 — L. Gray Code: KMRL 19 — Black Code: KMRB 19 — H (mm): 22 — GL (mm): 8 — Wrench (mm): 22 — Clamping Range (mm): 6 - 9
M 20 x 1,5 — Gray Code: KMRG 20 — L. Gray Code: KMRL 20 — Black Code: KMRB 20 — H (mm): 26 — GL (mm): 9 — Wrench (mm): 24 — Clamping Range (mm): 8 - 13
M 20 x 1,5 — Gray Code: KMRG 21 — L. Gray Code: KMRL 21 — Black Code: KMRB 21 — H (mm): 28 — GL (mm): 10 — Wrench (mm): 27 — Clamping Range (mm): 11 - 14
M 25 x 1,5 — Gray Code: KMRG 22 — L. Gray Code: KMRL 22 — Black Code: KMRB 22 — H (mm): 32 — GL (mm): 11 — Wrench (mm): 33 — Clamping Range (mm): 14 - 18

PG thread series:
PG 7 — Gray Code: KRG 11 — L. Gray Code: KRL 11 — Black Code: KRB 11 — H (mm): 21 — GL (mm): 8 — Wrench (mm): 15 — Clamping Range (mm): 3,5 - 6
PG 9 — Gray Code: KRG 12 — L. Gray Code: KRL 12 — Black Code: KRB 12 — H (mm): 22 — GL (mm): 8 — Wrench (mm): 19 — Clamping Range (mm): 4,5 - 7
PG 11 — Gray Code: KRG 13 — L. Gray Code: KRL 13 — Black Code: KRB 13 — H (mm): 22 — GL (mm): 8 — Wrench (mm): 22 — Clamping Range (mm): 6 - 9
PG 13,5 — Gray Code: KRG 14 — L. Gray Code: KRL 14 — Black Code: KRB 14 — H (mm): 26 — GL (mm): 9 — Wrench (mm): 24 — Clamping Range (mm): 8 - 13
PG 16 — Gray Code: KRG 15 — L. Gray Code: KRL 15 — Black Code: KRB 15 — H (mm): 28 — GL (mm): 10 — Wrench (mm): 27 — Clamping Range (mm): 11 - 14
PG 21 — Gray Code: KRG 16 — L. Gray Code: KRL 16 — Black Code: KRB 16 — H (mm): 32 — GL (mm): 11 — Wrench (mm): 33 — Clamping Range (mm): 14 - 18
PG 29 — Gray Code: KRG 17 — L. Gray Code: KRL 17 — Black Code: KRB 17 — H (mm): 35 — GL (mm): 11 — Wrench (mm): 42 — Clamping Range (mm): 18 - 25
PG 36 — Gray Code: KRG 18 — L. Gray Code: KRL 18 — Black Code: KRB 18 — H (mm): 39 — GL (mm): 13 — Wrench (mm): 53 — Clamping Range (mm): 25 - 32

Characteristics / Technical specifications

• Materials: Cap nut and gland body in Polyamide PA6 V2; cap nut optionally reinforced (PA6 V2 + 30% GF)
• Sealing ring material: TPV
• Washer material: Polystyrene
• Connection threads: Metric (EN 60423) and PG (DIN 40430) options
• Protection class: IP54
• Operating temperature range: -20 °C to +100 °C
• Available colors/codes listed per thread size (Gray RAL 7001 / Light Gray RAL 7035 / Black RAL 9005)
• Dust resistant with special seal; UV resistance available on request
• DIN type design and clamping; easy to assemble
• Wide range of clamping ranges depending on thread/size (see technical data list)
