Polyamide cable gland OMR series
PA6IP68halogen-free

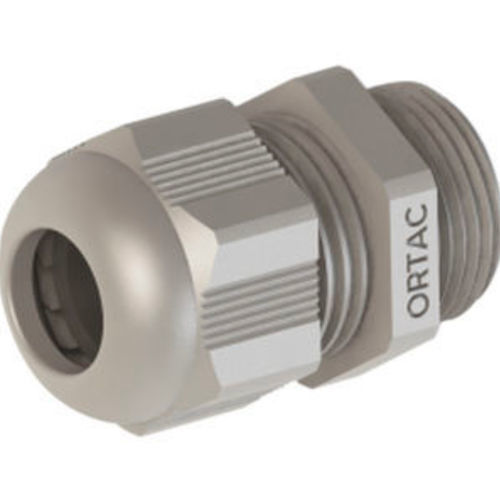

Polyamide cable gland - OMR series - ORTAC - PA6 / IP68 / halogen-free
Polyamide cable gland - OMR series - ORTAC - PA6 / IP68 / halogen-free
Polyamide cable gland - OMR series - ORTAC - PA6 / IP68 / halogen-free - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
polyamide, PA6
Protection level
IP68, halogen-free, UV-resistant, vibration-resistant
Other characteristics
metric, strain relief
Cable diameter

Min.: 3 mm
(0.12 in)

Max.: 18 mm
(0.71 in)

Thread diameter

Min.: 12 mm
(0.47 in)

Max.: 63 mm
(2.48 in)

Clamping range

Min.: 3 mm
(0.1 in)

Max.: 18 mm
(0.7 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 100 °C
(212 °F)

Description

Product
Polyamide cable glands - Metric (Standard type). Suitable for sealing and strain relief of electrical cables in industrial applications.

Materials / Components
Cap nut: Polyamide PA6 V2
Sealing ring: TPV
Gland body: Polyamide PA6 V2
Connection thread: Metric (EN 60423)

Protection, Temperature & Properties
Protection class: IP68 5 bar (with O-ring)
Temperature range: -20 °C to +100 °C (standard); -30 °C to +150 °C (short term)
Properties: Antivibration protection; UV resistance available on request; Easy to assemble; Halogen free; VDE approval: 40030037

Sizes / Technical Data (selection from table)
M12 x 1.5 | OMRG 01 / OMRL 01 / OMRB 01 | H 24 | GL 8/15 | Wrench 15 | Clamping 3 - 6.5 mm
M16 x 1.5 | OMRG 02 / OMRL 02 / OMRB 02 | H 28 | GL 8/15 | Wrench 19 | Clamping 4 - 10 mm
M20 x 1.5 | OMRG 04 / OMRL 04 / OMRB 04 (04RS) | H 29 | GL 10/15 | Wrench 24 | Clamping 4 - 12 mm
M25 x 1.5 | OMRG 06 / OMRL 06 / OMRB 06 (06RS) | H 38 | GL 10/15 | Wrench 33 | Clamping 9 - 18 mm
M32, M40, M50, M63 available (various codes and clamping ranges)

Long thread metric cable glands (examples)
M12 x 1.5 | OMRG 01L / OMRL 01L / OMRB 01L | H 24 | GL 15 | Wrench 15 | Clamping 3 - 6.5 mm
M16 x 1.5 | OMRG 11S / OMRL 11S / OMRB 11S | H 28 | GL 15 | Wrench 19 | Clamping 4 - 8 mm
M20 x 1.5 | OMRG 12RS / OMRL 12RS / OMRB 12RS | H 29 | GL 15 | Wrench 24 | Clamping 4 - 10 mm
M25 x 1.5 | OMRG 14RS / OMRL 14RS / OMRB 14RS | H 38 | GL 15 | Wrench 33 | Clamping 9 - 17 mm

Notes
M63 x 1.5 size polyamide cable glands are not covered by the UR certificate.

Technical specifications
  • Material: Polyamide PA6 V2 (cap nut and gland body)
  • Sealing ring material: TPV
  • Connection thread: Metric (EN 60423)
  • Protection class: IP68 (5 bar) with O-ring
  • Temperature range: -20 °C to +100 °C (standard); -30 °C to +150 °C (short term)
  • Antivibration protection; UV resistance available on request
  • Easy assembly; Halogen free
  • VDE approval: 40030037
  • Available metric sizes: M12, M16, M20, M25, M32, M40, M50, M63 (various codes and clamping ranges)
