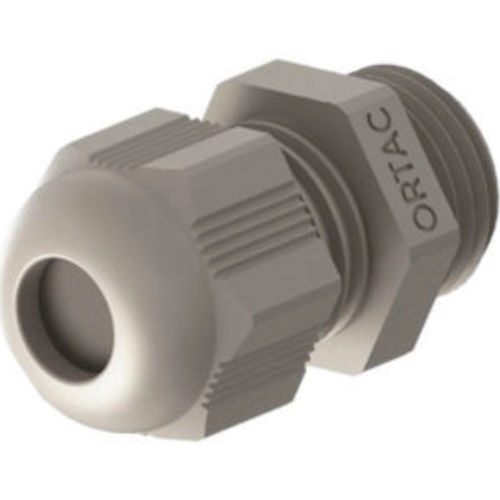

Polyamide cable gland KR

PA6vibration-resistanthalogen-free

Product name

• Closed-seal polyamide cable gland PA6 V2

Product details

• Cap nut: Polyamide PA6 V2
• Sealing ring: TPV special seal for dust resistance
• Gland body: Polyamide PA6 V2
• Connection thread: Metric (EN 60423) / PG (DIN 40430)
• Protection class: IP65 (5 bar with O-ring)
• Temperature range: -20 °C to +100 °C and -30 °C to +150 °C
• Key properties: dust resistance (special seal); antivibration protection; UV resistance (on request); easy assembly; halogen free

Technical data (Metric / PG thread cable glands)
M 12 x 1,5 | KMRG 01 | KMRL 01 | KMRB 01 | 24 | 8 | 15 | 16 | 3 - 6,5
M 16 x 1,5 | KMRG 02 | KMRL 02 | KMRB 02 | 28 | 8 | 19 | 19 | 4 - 8
M 16 x 1,5 | KMRG 03 | KMRL 03 | KMRB 03 | 29 | 10 | 22 | 22 | 5 - 10
M 20 x 1,5 | KMRG 04 | KMRL 04 | KMRB 04 | 29 | 10 | 24 | 24 | 6 - 12
M 20 x 1,5 | KMRG 05 | KMRL 05 | KMRB 05 | 33 | 10 | 27 | 27 | 10 - 14
M 25 x 1,5 | KMRG 06 | KMRL 06 | KMRB 06 | 38 | 10 | 33 | 33 | 13 - 18
M 32 x 1,5 | KMRG 07 | KMRL 07 | KMRB 07 | 41 | 10 | 42 | 42 | 18 - 25
M 40 x 1,5 | KMRG 08 | KMRL 08 | KMRB 08 | 51 | 10 | 53 | 53 | 22 - 32
M 50 x 1,5 | KMRG 09 | KMRL 09 | KMRB 09 | 53 | 18 | 60 | 60 | 30 - 38
M 63 x 1,5 | KMRG 10 | KMRL 10 | KMRB 10 | 55 | 18 | 70 | 65 | 34 - 44

PG 7 | KRG 01 | KRL 01 | KRB 01 | 24 | 8 | 15 | 16 | 3 - 6,5
PG 9 | KRG 02 | KRL 02 | KRB 02 | 28 | 8 | 19 | 19 | 4 - 8
PG 11 | KRG 03 | KRL 03 | KRB 03 | 29 | 8 | 22 | 22 | 5 - 10
PG 13,5 | KRG 04 | KRL 04 | KRB 04 | 29 | 9 | 24 | 24 | 6 - 12
PG 16 | KRG 05 | KRL 05 | KRB 05 | 33 | 9 | 27 | 27 | 10 - 14
PG 21 | KRG 06 | KRL 06 | KRB 06 | 38 | 11 | 33 | 33 | 13 - 18
PG 29 | KRG 07 | KRL 07 | KRB 07 | 41 | 11 | 42 | 42 | 18 - 25
PG 36 | KRG 08 | KRL 08 | KRB 08 | 51 | 13 | 53 | 55 | 22 - 32
PG 42 | KRG 09 | KRL 09 | KRB 09 | 53 | 13 | 60 | 60 | 30 - 38
PG 48 | KRG 10 | KRL 10 | KRB 10 | 55 | 14 | 65 | 65 | 34 - 44

Included documentation

• Technical datasheet available for the product (see product files)

Characteristics / technical specifications

• Material (cap nut & gland body): Polyamide PA6 V2
• Sealing: TPV special seal for dust resistance
• Connection thread standards: Metric (EN 60423) and PG (DIN 40430)
• Ingress protection: IP65 (5 bar with O-ring)
• Operating temperature ranges: -20 °C to +100 °C and -30 °C to +150 °C
• Available clamping ranges: see technical data table above (M12 to M63 and PG7 to PG48)
• Key properties: dust resistant, antivibration protection, UV resistance on request, easy to assemble, halogen free
• Available colours (codes): RAL 7001, RAL 7035, RAL 9005
