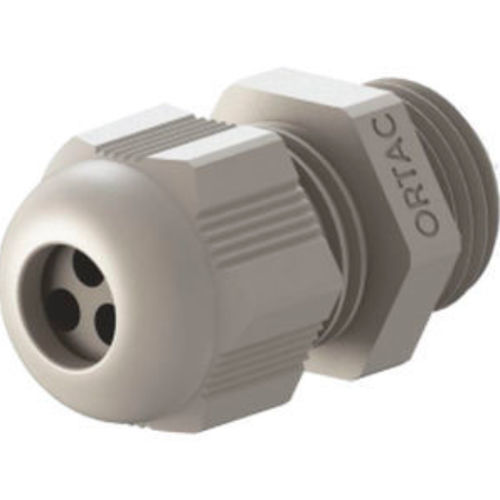

Polyamide cable gland OMRG 02A3

PA6IP65metric

Product name
Polyamide cable glands for multihole and flathole cables, metric threads

Materials and general characteristics
Cap nut: Polyamide PA6 V2
Sealing ring: TPV special seal for multi / flat cables
Gland body: Polyamide PA6 V2
Connection thread: Metric (EN 60423)
Protection Class: IP65
Temperature range: 20 °C +100 °C / -30 °C +150 °C

• For multi or flat cables
• Antivibration protection
• UV resistance
• Easy to assemble
• Halogen free

Technical Data - Metric thread cable glands (selection of available codes and hole counts)

• M 16 x 1.5: OMRG 02A3 / OMRL 02A3 / OMRB 02A3 — 2 holes, C = 3 mm
• M 16 x 1.5: OMRG 02B3 / OMRL 02B3 / OMRB 02B3 — 3 holes, C = 3 mm
• M 16 x 1.5: OMRG 02C3 / OMRL 02C3 / OMRB 02C3 — 4 holes, C = 3 mm
• M 16 x 1.5: OMRG 03A5 / OMRL 03A5 / OMRB 03A5 — 2 holes, C = 5 mm
• M 16 x 1.5: OMRG 03B5 / OMRL 03B5 / OMRB 03B5 — 3 holes, C = 5 mm
• M 20 x 1.5: OMRG 04A6 / OMRL 04A6 / OMRB 04A6 — 2 holes, C = 6 mm
• M 20 x 1.5: OMRG 04B5 / OMRL 04B5 / OMRB 04B5 — 3 holes, C = 5 mm
• M 20 x 1.5: OMRG 05A7 / OMRL 05A7 / OMRB 05A7 — 2 holes, C = 7 mm
• M 20 x 1.5: OMRG 05B6 / OMRL 05B6 / OMRB 05B6 — 3 holes, C = 6 mm
• M 20 x 1.5: OMRG 05C5 / OMRL 05C5 / OMRB 05C5 — 4 holes, C = 5 mm
• M 25 x 1.5: OMRG 06A5 / OMRL 06A5 / OMRB 06A5 — 2 holes, C = 5 mm
• M 25 x 1.5: OMRG 06A9 / OMRL 06A9 / OMRB 06A9 — 2 holes, C = 9 mm
• M 25 x 1.5: OMRG 06B5 / OMRL 06B5 / OMRB 06B5 — 3 holes, C = 5 mm
• M 25 x 1.5: OMRG 06B8 / OMRL 06B8 / OMRB 06B8 — 3 holes, C = 8 mm
• M 20 x 1.5: OMRG 06C7 / OMRL 06C7 / OMRB 06C7 — 4 holes, C = 7 mm
• M 25 x 1.5: OMRG 06G4 / OMRL 06G4 / OMRB 06G4 — 8 holes, C = 4 mm
• M 32 x 1.5: OMRG 07C9 / OMRL 07C9 / OMRB 07C9 — 4 holes, C = 9 mm
• M 32 x 1.5: OMRG 0703 / OMRL 0703 / OMRB 0703 — 16 holes, C = 3 mm

Technical Data - Flathole metric (selection)

• M 20 x 1.5: YMRG 05 / YMRL 05 / YMRB 05 — A = 7 mm, B = 13 mm
• M 20 x 1.5: YMRG 06 / YMRL 06 / YMRB 06 — A = 5 mm, B = 17 mm
• M 32 x 1.5: YMRG 07 / YMRL 07 / YMRB 07 — A = 8 mm, B = 22 mm
• M 40 x 1.5: YMRG 08 / YMRL 08 / YMRB 08 — A = 5.5 mm, B = 28 mm
• M 40 x 1.5: YMRG 08A / YMRL 08A / YMRB 08A — A = 10 mm, B = 28 mm
• M 50 x 1.5: YMRG 09 / YMRL 09 / YMRB 09 — A = 12 mm, B = 33 mm

Documents & drawings available
Technical datasheet and technical drawing available (product datasheet and technical drawing referenced on the product page).

Technical specifications

• Materials: Polyamide PA6 V2 for cap nut and gland body
• Sealing: TPV special seal for multi / flat cables
• Thread standard: Metric (EN 60423)
• Protection class: IP65
• Temperature range: 20 °C +100 °C / -30 °C +150 °C
• Suitable for: multi or flat cables
• Features: antivibration protection, UV resistance, easy to assemble, halogen free
• Available variations: multiple thread sizes (M16, M20, M25, M32, M40, M50) and multiple hole/slot configurations with product codes (OMRG / OMRL / OMRB and YMRG / YMRL / YMRB series)
