Polyamide cable gland ORL 18
IP54metricPG thread

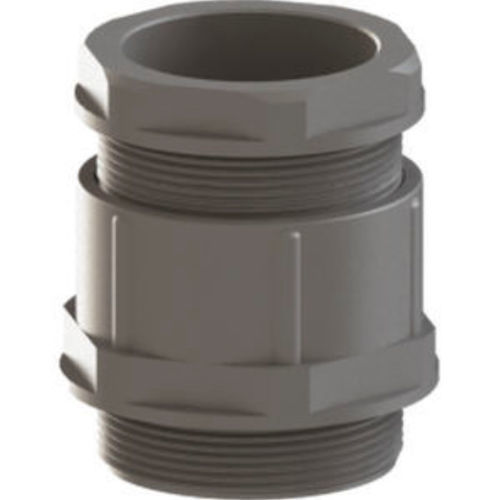

Polyamide cable gland - ORL 18 - ORTAC - IP54 / metric / PG thread
Polyamide cable gland - ORL 18 - ORTAC - IP54 / metric / PG thread
Polyamide cable gland - ORL 18 - ORTAC - IP54 / metric / PG thread - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
polyamide
Protection level
IP54
Other characteristics
PG thread, metric, DIN
Cable diameter

Min.: 3.5 mm
(0.14 in)

Max.: 32 mm
(1.26 in)

Thread diameter

Min.: 12 mm
(0.47 in)

Max.: 48 mm
(1.89 in)

Clamping range

Min.: 3.5 mm
(0.1 in)

Max.: 32 mm
(1.3 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 100 °C
(212 °F)

Description

Product overview
DIN-type polyamide cable glands (DMR/ORG series) for cable entry, strain relief and sealing in electrical enclosures. Cap nut: Polyamide PA6 V2 + 30% glass fibre. Gland body: Polyamide PA6 V2. Sealing ring: TPV. Washer: Polystyrene. Suitable for metric (EN 60423) and PG (DIN 40430) threads. Protection class IP54. Temperature range -20 °C to +100 °C. UV resistant. Easy assembly.

Technical Data (metric thread cable glands)
  • M 12 x 1,5 | DMRG 01 | DMRL 01 | DMRB 01 | H 21 | GL 8 | Wrench 15 | Clamping Range 3,5 - 6
  • M 16 x 1,5 | DMRG 02 | DMRL 02 | DMRB 02 | H 22 | GL 8 | Wrench 19 | Clamping Range 4,5 - 7
  • M 16 x 1,5 | DMRG 03 | DMRL 03 | DMRB 03 | H 22 | GL 8 | Wrench 22 | Clamping Range 6 - 9
  • M 20 x 1,5 | DMRG 04 | DMRL 04 | DMRB 04 | H 26 | GL 9 | Wrench 24 | Clamping Range 8 - 13
  • M 20 x 1,5 | DMRG 05 | DMRL 05 | DMRB 05 | H 28 | GL 10 | Wrench 27 | Clamping Range 11 - 14
  • M 25 x 1,5 | DMRG 06 | DMRL 06 | DMRB 06 | H 32 | GL 11 | Wrench 33 | Clamping Range 14 - 18


Technical Data (PG thread cable glands)
  • PG 7 | ORG 11 | ORL 11 | ORB 11 | H 21 | GL 8 | Wrench 15 | Clamping Range 3,5 - 6
  • PG 9 | ORG 12 | ORL 12 | ORB 12 | H 22 | GL 8 | Wrench 19 | Clamping Range 4,5 - 7
  • PG 11 | ORG 13 | ORL 13 | ORB 13 | H 22 | GL 8 | Wrench 22 | Clamping Range 6 - 9
  • PG 13,5 | ORG 14 | ORL 14 | ORB 14 | H 26 | GL 9 | Wrench 24 | Clamping Range 8 - 13
  • PG 16 | ORG 15 | ORL 15 | ORB 15 | H 28 | GL 10 | Wrench 27 | Clamping Range 11 - 14
  • PG 21 | ORG 16 | ORL 16 | ORB 16 | H 32 | GL 11 | Wrench 33 | Clamping Range 14 - 18
  • PG 29 | ORG 17 | ORL 17 | ORB 17 | H 35 | GL 11 | Wrench 42 | Clamping Range 18 - 25
  • PG 36 | ORG 18 | ORL 18 | ORB 18 | H 39 | GL 13 | Wrench 53 | Clamping Range 25 - 32


Key features / Technical specifications
  • Materials: Cap nut - Polyamide PA6 V2 + 30% glass fibre; Gland body - Polyamide PA6 V2; Washer - Polystyrene; Sealing ring - TPV
  • Connection thread standards: Metric (EN 60423) and PG (DIN 40430)
  • Protection class: IP54
  • Temperature range: -20 °C to +100 °C
  • UV resistance: Yes
  • Design: DIN type design with clamping
  • Assembly: Easy to assemble
  • Available finishes: Gray (RAL 7001), Light Gray (RAL 7035), Black (RAL 9005)
  • Detailed dimensional and part-code matrix provided for Metric and PG thread sizes (see technical data above)
