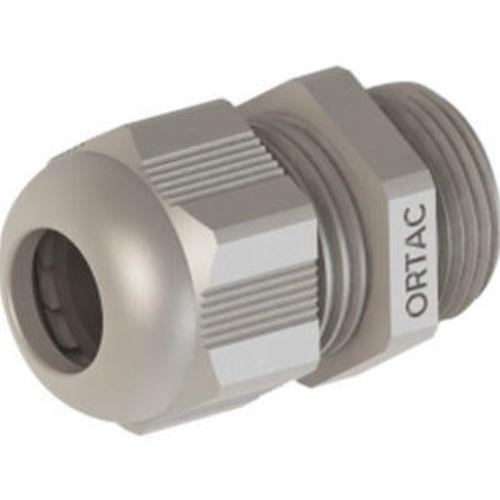

Polyamide cable gland OR series

PA6vibration-resistanthalogen-free

Product name
Polyamide cable glands - PG

Materials

• Cap nut: Polyamide PA6 V2
• Sealing ring: TPV
• Gland body: Polyamide PA6 V2

Thread / Protection / Temperature
Connection thread: PG (DIN 40430)
Protection class: IP68, 5 bar (with O-ring)
Temperature range: -20 °C to +100 °C (standard); short-term -30 °C to +150 °C

Properties

• Anti-vibration protection
• UV resistance available on request
• Easy to assemble
• Halogen-free

Technical data (sizes, codes, dimensions, clamping ranges)
Header: Size | AG thread | Gray code (RAL 7001) | Light gray code (RAL 7035) | Black code (RAL 9005) | H mm | GL mm | A mm | B mm | Clamping range mm
PG 7 | ORG 01 | ORL 01 | ORB 01 | 24 | 8 | 15 | 16 | 3 - 6.5 mm
PG 9 | ORG 02 | ORL 02 | ORB 02 | 28 | 8 | 19 | 19 | 4 - 8 mm
PG 11 | ORG 03 | ORL 03 | ORB 03 | 29 | 8 | 22 | 22 | 5 - 10 mm
PG 13,5 (RS) | ORG 04RS | ORL 04RS | ORB 04RS | 29 | 9 | 24 | 24 | 4 - 10 mm
PG 13,5 | ORG 04 | ORL 04 | ORB 04 | 29 | 9 | 24 | 24 | 6 - 12 mm
PG 16 | ORG 05 | ORL 05 | ORB 05 | 33 | 9 | 27 | 27 | 10 - 14 mm
PG 21 (RS) | ORG 06RS | ORL 06RS | ORB 06RS | 38 | 11 | 33 | 33 | 9 - 17 mm
PG 21 | ORG 06 | ORL 06 | ORB 06 | 38 | 11 | 33 | 33 | 13 - 18 mm
PG 29 | ORG 07 | ORL 07 | ORB 07 | 41 | 11 | 42 | 42 | 18 - 25 mm
PG 36 | ORG 08 | ORL 08 | ORB 08 | 51 | 13 | 53 | 53 | 22 - 32 mm
PG 42 | ORG 9 | ORL 9 | ORB 9 | 55 | 13 | 60 | 60 | 30 - 38 mm
PG 48 | ORG 10 | ORL 10 | ORB 10 | 55 | 14 | 65 | 65 | 34 - 44 mm

Notes
PG thread cable glands series available in multiple RAL color codes. PG48 size polyamide cable glands are not covered by the UR certificate.

Technical specifications

• Materials: Polyamide PA6 V2 (cap nut, gland body); sealing ring: TPV
• Connection thread: PG (DIN 40430)
• Protection class: IP68, 5 bar (with O-ring)
• Temperature range: -20 °C to +100 °C (standard); short-term -30 °C to +150 °C
• Properties: anti-vibration protection, UV resistance on request, easy assembly, halogen-free
• Available sizes and clamping ranges: PG7 (3 - 6.5 mm), PG9 (4 - 8 mm), PG11 (5 - 10 mm), PG13.5 (4 - 10 mm and variant 6 - 12 mm), PG16 (10 - 14 mm), PG21 (9 - 17 mm and variant 13 - 18 mm), PG29 (18 - 25 mm), PG36 (22 - 32 mm), PG42 (30 - 38 mm), PG48 (34 - 44 mm)
• Multiple product codes/types per size (examples: ORG / ORL / ORB families shown per PG size)
