Circular saw SUPER BROWN 350/60 SA

horizontalfor metalsfor stainless steel

Overview

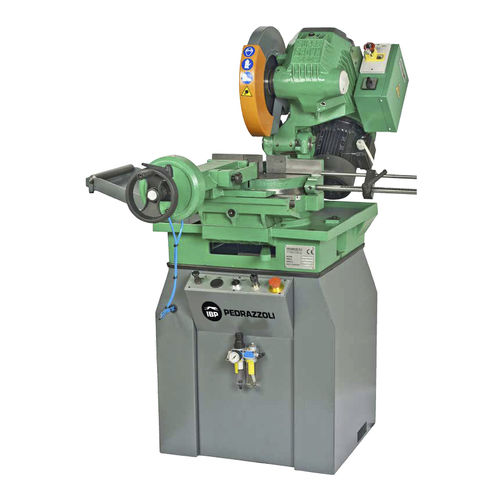

The IBP PEDRAZZOLI SUPER BROWN 350/60 SA Semi-automatic Circular Saw with rapid clamping and removable anti-burr jaw features a continuous speed variator for cutting all metals.

FEATURES

• Three phase (230V 50Hz or 400V 50Hz) with blade speed variator.
• Mechanism for the rotation of head block for angled cuts up to 60° left and 45° right with blocking lever.
• Pneumatic vice with removable anti-burr device.
• Pneumatic cylinder for head movement, with brake for speed adjustment.
• Transmission by means of a double expandable pulley for speeds variable between 15 and 90 rpm.
• Tilting head on adjustable self-lubricating bushings.
• Gear reverser.
• Drive pedal for semi-automatic cycle.
• Emergency push button with key on control panel.
• Blade lubrication cooling system with electric pump.
• Coolant liquid tank with extractable pump for easy cleaning.
• Complete protection guard with rapid blade change system.
• Tube support arm with sliding roller.
• Bar stop with millimetre ruler.
• Circular blade Ø 350 mm.
• Instruction book for use and maintenance.
• Set of keys for maintenance.

MAINS FEATURES

• All main machine components are in cast iron. Very robust structure: it reduces resonance and vibrations during cutting cycle.
• Worm drive gearbox with clutch. Prevents blade breaking if the blade jams during the cutting cycle.
• Blade speed variator. Allows selection of blade rotation speed (15 ÷ 90 RPM) according to material (examples given: Stainless steel 20 / steel 40 / tube 70 / alloys 90).
• Blade rotation reverser. For thin-walled tubes clockwise rotation; for medium/thick walls or bar cutting use reverse rotation.
• Electric lubrication pump. Supplies continuous and constant lubrication.
• Large piece support table rotating together with head. Prevents cutting into vice base when making angled cuts and supports the cut part up to the end of cut.
• 45° right and 45-60° left cuts. Large cutting range for right and left angled cuts.
• Tilting head on adjustable self-lubricating bearings. Prevents blade seizing and allows adjustment of cutting perpendicularity over time.
• Vice with adjustable gib plate: can be positioned lengthwise along the machine base and moved left/right as required; adjustable gib plate reduces play on vice carriage movement.
• Anti-burr assembly: mechanical device sliding with vice carriage to grip the cut part and prevent burr formation.
• Blade cleaning roller (option). Removes chips from blade teeth when cutting bars and thick-walled tubes, enabling higher speed and regular advance.
• Control panel located in easily accessible position.
• FR assembly (Filter – Regulator): Filter prevents condensation reaching system valves; Regulator for adjustment of system pressure.

Cutting capacity
Round tubes: 45° left: 102 mm
0°: 102 mm
45° right: 102 mm
60° right: 90 mm

Square sections: 45° left: 90 mm
0°: 85 mm
45° right: 90 mm
60° right: 70 mm

Rectangular sections: 45° left: 120 x 60 mm
0°: 158 x 85 mm
45° right: 120 x 85 mm
60° right: 80 x 70 mm

Accessories upon request

• Micromist lubrication
• Clamp pressure adjustment
• Roller tables for loading and unloading
• Blade cleaner roller

Technical data
Dimensions (Length x Width x Height): 1000 x 1500 x 1500 mm
Work plane height: 950 mm
Weight: 320 kg

caractéristiques / spécifications techniques

• Model: SUPER BROWN 350/60 SA
• Brand: IBP PEDRAZZOLI
• Circular blade diameter: 350 mm
• Supply: Three-phase 230V 50Hz or 400V 50Hz
• Blade speed range: 15 ÷ 90 RPM (via double expandable pulley variator)
• Blade rotation reverser (clockwise / counter-clockwise)
• Pneumatic vice with removable anti-burr device
• Pneumatic cylinder for head movement with brake for speed adjustment
• Tilting head on adjustable self-lubricating bushings
• Worm drive gearbox with clutch
• Electric blade lubrication pump and coolant tank with extractable pump
• Complete protection guard with rapid blade change system
• Tube support arm with sliding roller and bar stop with millimetre ruler
• Drive pedal for semi-automatic cycle and emergency push button with key
• Main components in cast iron for reduced vibration
• Included: instruction book for use and maintenance; set of maintenance keys
• Dimensions: 1000 x 1500 x 1500 mm; Work plane height: 950 mm; Weight: 320 kg
