Circular saw PERRIS 350 MRM
verticalfor non-ferrous metalsfor aluminum

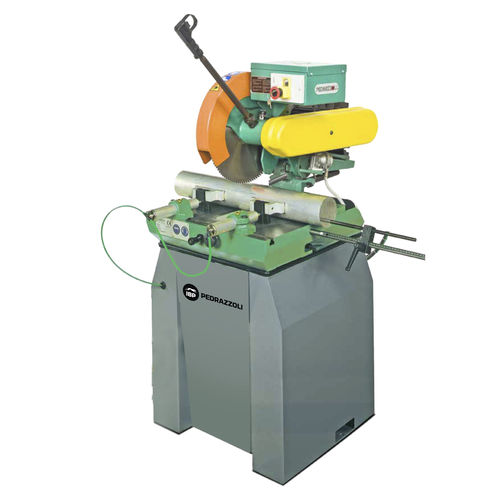

Circular saw - PERRIS 350 MRM - PEDRAZZOLI - vertical / for non-ferrous metals / for aluminum
Circular saw - PERRIS 350 MRM - PEDRAZZOLI - vertical / for non-ferrous metals / for aluminum
Add to favorites
Compare this product

Characteristics

Technology
circular
Orientation
vertical
Treated material
for aluminum, for non-ferrous metals
Applications
for profiles, for pipes, for tubes, for bars, for cylindrical products
Operational mode
manual actuation
Other characteristics
electric, with cooling system, single-blade, with tilting blade
Round piece diameter

Max.: 120 mm
(5 in)

Min.: 50 mm
(2 in)

Description

Product description
The IBP PEDRAZZOLI PERRIS 350 MRM manual circular saw designed for cutting light alloys, equipped with manual clamping vices.

Main features
  • Single speed – three-phase (230V 50Hz or 400V 50Hz).
  • Head rotation mechanism for angled cuts up to 45° left, 45° right and 45° vertical.
  • Two manual vices adjustable longitudinally and laterally (MRM).
  • Two blade speeds selectable by inverting pulleys.
  • Balanced tilting head on shielded ball bearings.
  • Emergency stop with key on control panel.
  • Safety switch for blade drive on the lever handle.
  • Blade lubrication/cooling with membrane pump.
  • Full protection guard with rapid blade change system.
  • Bar stop with millimeter ruler positionable on both sides.
  • Standard equipment: instruction manual and set of wrenches (blade not included).


Cutting capacity
  • Round tubes
    45° left: 95 mm
    0°: 120 mm
    45° right: 95 mm
    60° left: 50 mm
  • Square sections
    45° left: 95 mm
    0°: 110 mm
    45° right: 90 mm
    60° left: 50 mm
  • Rectangular sections
    45° left: 130 x 55 mm
    0°: 155 x 90 mm
    45° right: 130 x 55 mm
    60° left: 150 x 40 mm


Accessories on request
  • Copper cutting modification
  • Widia blade
  • Roller tables for loading and unloading with bar stop


Technical data
Dimensions (L x W x H): 750 x 1050 x 1750 mm
Work top height: 790 mm
Weight: 210 kg

Technical specifications
  • Model: PERRIS 350 MRM
  • Application: cutting light alloys
  • Power supply: three-phase (230V 50Hz or 400V 50Hz)
  • Head rotation: up to 45° left, 45° right and 45° vertical
  • Blade speeds: two speeds via pulley inversion
  • Vices: two manual vices adjustable longitudinally and laterally
  • Blade cooling/lubrication: membrane pump
  • Safety: emergency stop with key; safety switch on lever handle
  • Guard: full protection guard with rapid blade change
  • Accessories available: copper cutting kit, Widia blade, roller tables
  • Standard equipment: instruction manual and set of wrenches (blade not included)
  • Dimensions and weight: 750 x 1050 x 1750 mm; work top height 790 mm; weight 210 kg
