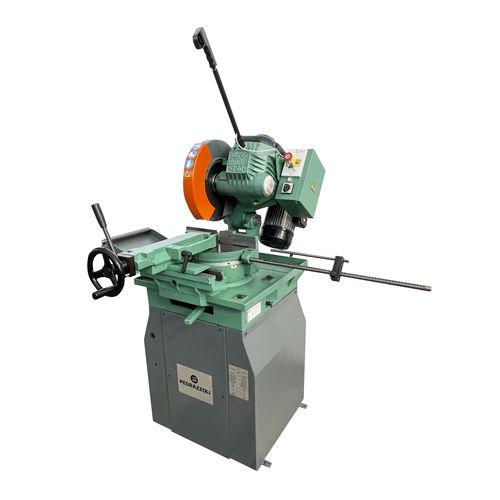

Circular saw SUPER BROWN 350/60 MRM

for metalsfor circular cutsfor bars

Product description
The manual circular saw IBP PEDRAZZOLI SUPER BROWN 350/60 MRM features manual clamping with a rapid vice and a removable anti-burr jaw. It is equipped with a continuous mechanical speed variator suitable for cutting all metals and a blade lubrication-cooling system.

Features

• Three-phase power supply (230 V 50 Hz or 400 V 50 Hz) with mechanical speed variator.
• Head-block rotation mechanism for angled cuts up to 60° left and 45° right with locking lever.
• Manual vice with rapid clamping and removable anti-burr device.
• Transmission by double expandable pulley for speeds variable between 15 and 90 RPM.
• Tilting head on adjustable self-lubricating bushings.
• Gear reverser and safety switch for blade drive on the lever hand grip.
• Blade lubrication-cooling system with electric pump and coolant tank with extractable pump for easy cleaning.
• Complete protection guard with rapid blade change system; emergency push button with key on control panel.
• Tube support arm with sliding roller and bar stop with millimetre ruler.
• Circular blade diameter Ø 350 mm. Instruction book and set of maintenance keys included.

Advantages

• Patented speed variator allows stepless adjustment of cutting speed to material and blade diameter, ensuring clean, burr-free cuts.

Cutting capacity
Round tubes: 45° left: 102 mm
0°: 102 mm
45° right: 102 mm
60° right: 90 mm

Square sections: 45° left: 90 mm
0°: 85 mm
45° right: 90 mm
60° right: 70 mm

Rectangular sections: 45° left: 120 x 60 mm
0°: 158 x 85 mm
45° right: 120 x 85 mm
60° right: 80 x 70 mm

Accessories upon request

• Micromist lubrication unit
• Loading and unloading roller tables
• Blade cleaning roller

Technical data
Dimensions (L x W x H): 900 x 1550 x 1850 mm
Work plane height: 950 mm
Weight: 300 kg

Characteristics / technical specifications

• Model: SUPER BROWN 350/60 MRM
• Brand: IBP PEDRAZZOLI
• Blade diameter: Ø 350 mm
• Power supply: Three-phase (230 V 50 Hz or 400 V 50 Hz)
• Speed range: 15 - 90 RPM (double expandable pulley)
• Head rotation: up to 60° left, 45° right (locking lever)
• Manual vice with rapid clamping and removable anti-burr device
• Tilting head on adjustable self-lubricating bushings
• Gear reverser; emergency push button with key; safety switch on lever hand grip
• Blade lubrication-cooling system with electric pump; coolant tank with extractable pump
• Complete protection guard with rapid blade change system; tube support arm with sliding roller; bar stop with millimetre ruler
• Dimensions (L x W x H): 900 x 1550 x 1850 mm; Work plane height: 950 mm; Weight: 300 kg
