Circular saw SUPER BROWN 350 AP
for metalsfor pipesfor profiles

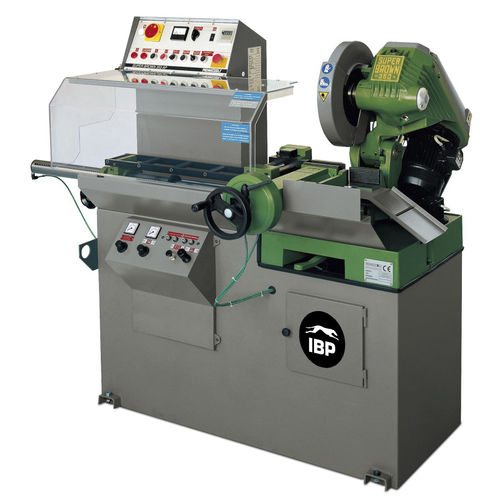

Circular saw - SUPER BROWN 350 AP - PEDRAZZOLI - for metals / for pipes / for profiles
Circular saw - SUPER BROWN 350 AP - PEDRAZZOLI - for metals / for pipes / for profiles
Add to favorites
Compare this product

Characteristics

Technology
circular
Treated material
for metals
Applications
for profiles, for pipes, for cylindrical products
Operational mode
automatic
Other characteristics
with cooling system, pneumatic, variable-speed, single-blade, programmable, with tilting blade
Circular saw blade diameter

350 mm
(14 in)

Round piece diameter

Max.: 115 mm
(5 in)

Min.: 0 mm
(0 in)

Description

Product description
The PEDRAZZOLI SUPER BROWN 350 AP is an automatic circular saw designed for continuous cutting of metallic profiles. It features pneumatic clamping with a removable anti-burr jaw, a tilting head and a stepless speed variator to adapt cutting to different materials and blade types.

FEATURES
  • Three-phase power supply (230V 50 Hz or 400V 50 Hz).
  • Pneumatic cylinder for head movement with brake for speed control.
  • Transmission via double expandable pulley for variable speeds from 15 to 90 rpm.
  • Tilting head on adjustable self-lubricating bushings.
  • 600 mm step feeder controlled by pneumatic cylinder.
  • Repeater up to 9 steps (total stroke 5400 mm).
  • Maximum feeder collet opening: 160 mm.
  • Programmable piece counter.
  • Minimum final scrap: 160 mm.
  • Feeder speed adjustment valve.
  • Ammeter and gear reverser.
  • Emergency push button with key and lockable switch on control panel.
  • Blade lubrication-cooling system with electric pump; coolant tank with extractable pump for cleaning.
  • Complete protection guard with rapid blade change system.
  • Circular blade Ø 350 mm.
  • Instruction manual and set of maintenance wrenches included.


ADVANTAGES
  • Head-block rotation mechanism for angled cuts up to 45° left with locking lever.
  • Pneumatic vice with removable anti-burr device for clean cuts.


CUTTING CAPACITY
Round tubes — 0°: 115 mm / 45° right: 115 mm
Square sections — 0°: 95 mm / 45° right: 90 mm
Rectangular sections — 0°: 160 x 90 mm / 45° right: 120 x 80 mm


ACCESSORIES UPON REQUEST
  • Micromist lubrication
  • Vertical clamp assembly
  • Roller tables for loading and unloading
  • Blade cleaner roller


TECHNICAL DATA
Dimensions (L x W x H): 1300 x 1350 x 1600 mm
Work plane height: 950 mm
Weight: 420 kg

  • Model: SUPER BROWN 350 AP
  • Power supply: Three-phase (230V 50 Hz or 400V 50 Hz)
  • Speed range: 15–90 rpm (double expandable pulley)
  • Blade diameter: 350 mm
  • Feeder step: 600 mm (pneumatic)
  • Repeater: up to 9 steps (total stroke 5400 mm)
  • Max feeder collet opening: 160 mm
  • Minimum final scrap: 160 mm
  • Cooling: blade lubrication-cooling system with electric pump; coolant tank with extractable pump
  • Safety: complete protection guard; emergency push button with key and lockable switch
  • Controls: programmable piece counter; feeder speed adjustment valve; ammeter; gear reverser
