Digital microchip XSJ-10-EMPD-120L

detectionInGaAsInP

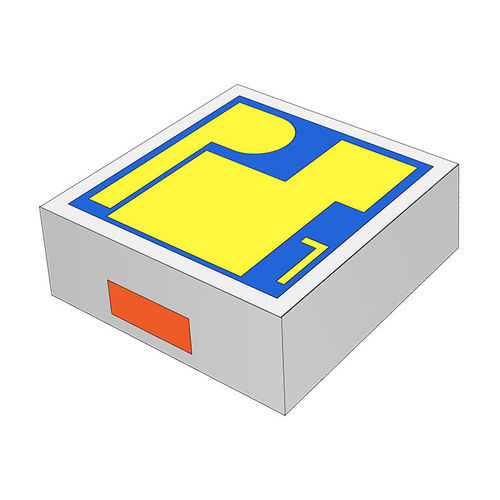

The XSJ-10-EMPD-120L is a side illuminated InGaAs InP PIN monitoring photodetector chip with a planar structure. The anode and cathode are on the front, and the chip side detection window is 120umX60um, suitable for data centers and telecommunications edge emitting lasers. It has high responsiveness in the 980nm to 1620nm wavelength range and is suitable for non-airtight packaging. 1. PN bond pad on top 2. Edge detectable area: 120μmX60μm. 3. High responsibility and low dark current. 4. 100% testing and inspection. 5. Meet a non-hermetic package. 6. Excellent reliability: All chips have passed the qualification requirements as specified by Telcordia -GR-468-CORE. 7. RoHS2.0 (2011/65/EU) compliant. Applications 1. Back facet laser power monitoring. 2. FTTH digital optical communications. 3. Optical interconnection.
