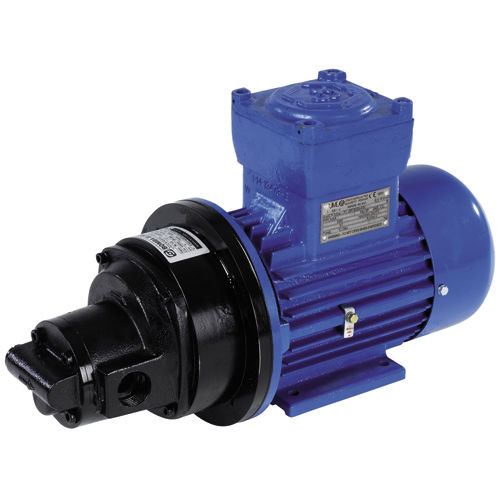

Gear pump JEV serieswateralcoholoil
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Fluid
- water, alcohol, oil, for diesel, gasoline
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer, cooling, drain, filling, lift, suction
- Material
- steel
- Fluid specification
- for viscous fluids
- Voltage
- 400 V, 380 V
- Protection level
- ATEX
- Flow
0.5 m³/h, 1 m³/h, 2.5 m³/h, 3.5 m³/h
(17.65733 ft³/h, 35.31467 ft³/h, 88.28667 ft³/h, 123.60133 ft³/h)- Head
Min.: 0 m
(0'00" )Max.: 100 m
(328'01" )- Power
Min.: 0.4 kW
(0.54 hp)Max.: 2.2 kW
(2.99 hp)- Fluid temperature
110 °C
(230 °F)
Description
ATEX power-geared electric pumps
Descriptive
Atex Pump marking: ATEX II 2 GD c T4 II B.
Technical data:
electric gear pump
Self-priming pump
Suction lift: max. 5 metres
Motor: ATEX II 2 GD c T4 II B
Rotation speed: 1400 rpm
Current: 1.5 (JEV41EX), 2.2 (JEV51EX), 4.1 (JEV71EX), 5.1 (JEV81EX)
Orifice Ø: 3/4"F, 1"F, 1"1/4F
Specifications and advantages:
Electric gear pump with an ATEX motor
Characteristics
More Information
Fluid - Diesel, Oil
Technology - Gear
ATEX - Yes
Pump marking - ATEX II 2 GD c T4 II B
Pump - Bare
Orifice - 3/4"F, 1"F or 1"1/4F
Materials - Cast-iron
Mechanism - Steel
