solvent pump / oil / for diesel / pneumatic
AL1PTFE-EX

Add to MyDirectIndustry favorites
Compare this product

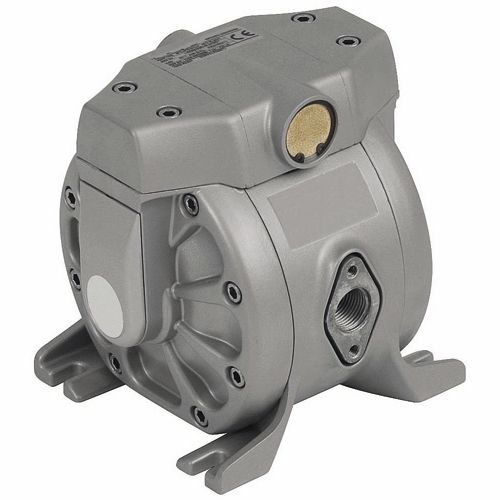

solvent pump / oil / for diesel / pneumatic solvent pump / oil / for diesel / pneumatic - AL1PTFE-EX
{{requestButtons}}

Characteristics

  • Media:

    for solvents, oil, for diesel

  • Operation:

    pneumatic

  • Priming:

    self-priming

  • Technology:

    diaphragm

  • Domain:

    industrial

  • Other characteristics:

    dry, adjustable, ATEX, for transfer, aluminum, PTFE, metal, EPDM

  • Flow:

    100 l/min (26.4172 us gal/min)

  • Pressure:

    7 bar (101.526 psi)

Description

The ATEX pump series has been specially designed for transferring potentially explosive atmospheres of fluids such as water, gasoline, diesel, alcohol, toluene, trichlorethylene, acetone and white spirit.

Construction materials

Body: Aluminium
Membranes: PTFE
Specifications and advantages:

Compliant with the ATEX directive 94/9/EC ATEX.
Suitable for the transfer of aggressive and/or viscous liquids.
Metal pumps are significantly resistant to solvents, hydrocarbons, etc.
Dry self-priming. The priming height varies depending on whether the pump is dry or wet.
Adjustable flow rate by adjusting the pressure and flow rate of the air (see the accessories).
In case of dry running, the pump continues to run without overheating or wear.
If the delivery of liquid is stopped, the pump stops automatically without getting damaged.

Characteristics

More Information
FLUID Petrol, Diesel, Oil, Solvent
TECHNOLOGY Membrane
ATEX Yes
PUMP MARKING Ex II2 GD IIB/IIC 95°C
PUMP Bare
MAX FLOW RATE 100l/min
ORIFICE 1’’
MATERIALS Aluminium
BALLS PTFE
SOCKETS Stainless steel
MAX. VISCOSITY 5000 cPo
PRESSURE 7 bars
DRY MEMBRANE 4,5 m
WET MEMBRANE 7 m
AIR CONSUMPTION from 3 to 30 Nm3/h
MEMBRANE PTFE
PARTICLES 4 mm
