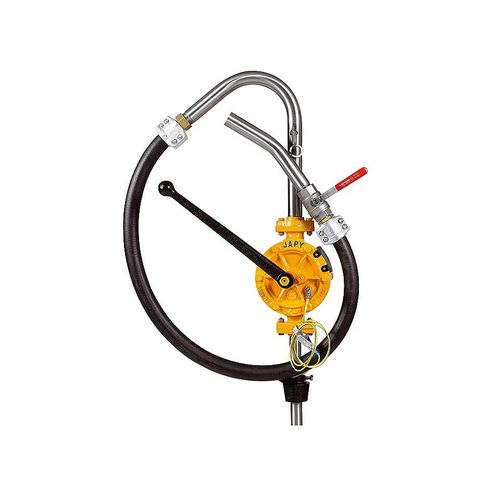

Gasoline pump FAT seriesdiesel fuelfor solventsalcohol
Add to favorites
Compare this product
Characteristics
- Fluid
- water, for solvents, alcohol, oil, diesel fuel, for gasoline
- Operation
- manual
- Priming
- semi-submersible
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer, discharge
- Material
- stainless steel, PTFE, brass, polyethylene
- Protection level
- ATEX
- Other characteristics
- suction, standard, flange, rotary, seal
- Flow
0.9 m³/h, 1.3 m³/h, 2 m³/h
(31.7832 ft³/h, 45.90907 ft³/h, 70.62933 ft³/h)
Description
ATEX manual pumps equipped for solvents
Descriptive
Construction materials
Body, cover and lever: cast iron
Inner mechanism: brass
Braid: PTFE
Suction: 3/4'' stainless steel pipe with 2” bung
Seal: flange O-ring made of Viton®. Optional PTFE seal (FAT_-PTFE)
Discharge pipe: stainless steel elbow fitting, 2 m cross-linked polyethylene hose (UPE)
Fitting: brass half-shells
Stainless steel quarter-turn valve with spout (FAT_SO version)
Manual delivery gun made of nickel-plated brass (FAT_SO2 version)
Specifications and advantages:
Bare or equipped manual pumps for the transfer of inflammable liquids and/or use in a potentially explosive atmosphere.
Products compliant with the ATEx standard 94/9 EC.
ATEx certificate no. iNERiS - EQEN 025625/12.”
