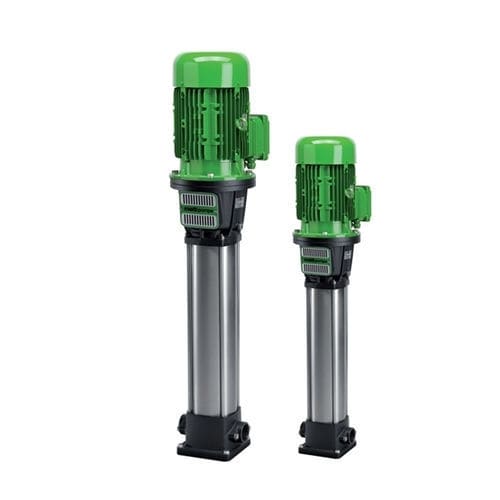

Centrifugal pump MEKV50T series

waterelectricstationary

Description
Vertical multistage electric pumps with threaded inline ports and motor support for IEC standard motors. Suitable for pressure boosting, firefighting, washdown, irrigation and spraying systems. Performance data in the table refer to 50 Hz; other frequencies/configurations available on request.

Series and performance (50Hz)
Series | CAPACITY UP TO (50Hz) | HEAD UP TO (50Hz) | POWER UP TO (50Hz)
MEKV50T-8 | 8 m3/h | 250 m | 5,5 kW
MEKV50T-10 | 12 m3/h | 240 m | 7,5 kW
MEKV50T-12 | 18 m3/h | 265 m | 11 kW
MEKV50T-18 | 24 m3/h | 285 m | 15 kW
MEKV50T-24 | 36 m3/h | 285 m | 15 kW

Applications

• Pressure boosting systems
• Firefighting systems
• Washdown and cleaning systems
• Irrigation systems
• Spraying systems

Technical characteristics / specifications

• Design: vertical multistage electric pump
• Ports: threaded inline ports
• Motor support: for IEC standard motors
• Product line: Green line
• Available models: MEKV50T-8, MEKV50T-10, MEKV50T-12, MEKV50T-18, MEKV50T-24
• Flow range (50 Hz): 8–36 m3/h depending on model
• Head range (50 Hz): up to 285 m depending on model
• Power (50 Hz): 5,5 kW to 15 kW depending on model
