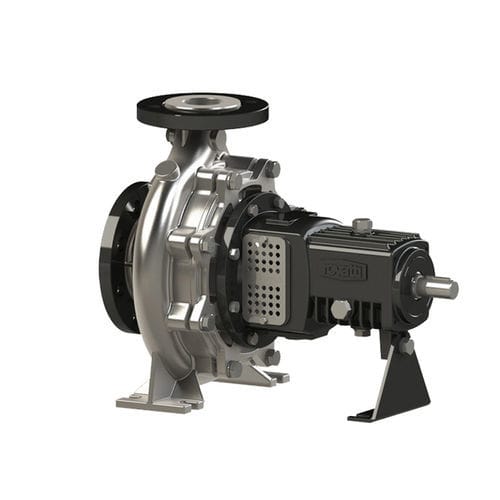

Centrifugal pump SNX series

for cooling waterwaterstationary

Product overviewHorizontal bareshaft single-stage centrifugal pumps in AISI 316 cast stainless steel with axial inlet and volute outlet. Dimensions and performance comply with EN733 - DIN24255 standards. Part of the Green line.ApplicationsWater supplyFirefighting systemsHVAC and conditioning systemsCooling water circuitsSeries table (INLET X OUTLET — CAPACITY UP TO — HEAD UP TO — MAX SPEED IN RPM)SNX32 | 50 x 32 | 52 m3/h | 95 m | 3500 RPMSNX40 | 65 x 40 | 95 m3/h | 150 m | 3500 RPMSNX50 | 65 x 50 | 120 m3/h | 135 m | 3500 RPMTechnical features / specificationsMaterial: AISI 316 cast stainless steelConfiguration: Horizontal bareshaft, single-stageInlet: axial inletOutlet: volute (scroll) outletStandards: EN733 - DIN24255Product line: Green lineAvailable models: SNX32, SNX40, SNX50Inlet x Outlet sizes: SNX32 = 50 x 32; SNX40 = 65 x 40; SNX50 = 65 x 50Capacity up to: SNX32 = 52 m3/h; SNX40 = 95 m3/h; SNX50 = 120 m3/hHead up to: SNX32 = 95 m; SNX40 = 150 m; SNX50 = 135 mMax speed: 3500 RPM
