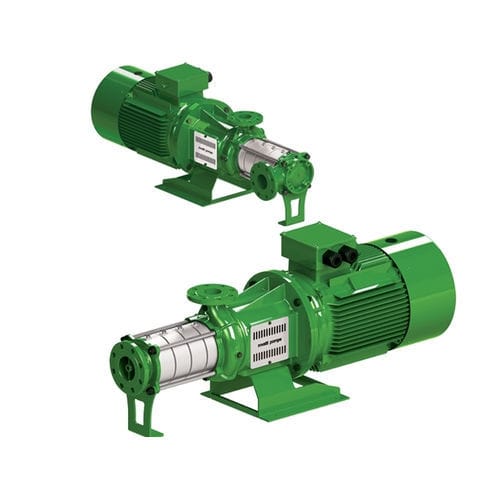

Centrifugal pump MEK series

waterfor industrial waterwith electric motor

Product descriptionHorizontal multistage centrifugal pumps MEKX and MEKRX manufactured in AISI 304 stainless steel. Designed for installation with flanged suction and discharge ports and IEC motor support. Available with axial or radial inlet configurations. Multiple sizes and hydraulic stages cover a wide operating range for industrial fluid transfer and water services.ApplicationsConditioning systemsWater treatmentWashdown systemsIrrigation systemsFish farmingPressure boostingAvailable series and performance (50Hz)Series | CAPACITY UP TO (50Hz) | HEAD UP TO (50Hz) | POWER UP TO (50Hz)MEKX80-50 | 78 m3/h | 250 m | 37 kWMEKX80-70 | 102 m3/h | 240 m | 55 kWMEKX100-100 | 138 m3/h | 240 m | 90 kWMEKX150-180 | 240 m3/h | 270 m | 132 kWMEKRX80-50 | 78 m3/h | 250 m | 37 kWMEKRX80-70 | 102 m3/h | 240 m | 55 kWMEKRX100-100 | 138 m3/h | 240 m | 90 kWSpecifications / Technical featuresConstruction material: AISI 304 stainless steelType: Horizontal multistage centrifugal pumpPorts: Flanged connectionsMotor support: IEC motor supportInlet: Axial or radial inletSeries: MEKX and MEKRX (multiple sizes available)Maximum capacity (50Hz): up to 240 m3/h (depending on series)Maximum head (50Hz): up to 270 m (depending on series)Maximum motor power (50Hz): up to 132 kW (depending on series)
