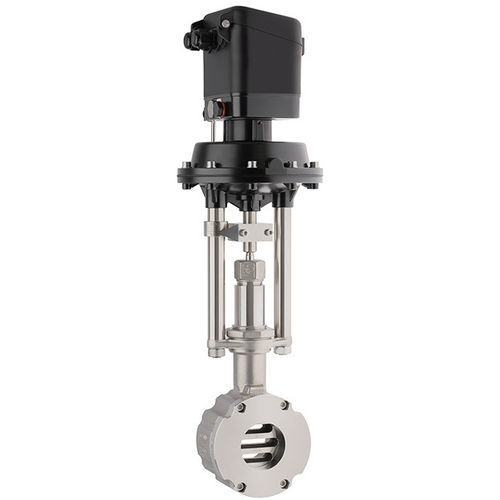

Sliding gate valve 8021/8049-IO-Linkpneumatically-operatedfor controlshut-off
Add to favorites
Compare this product
Characteristics
- Type
- sliding gate
- Operation
- pneumatically-operated
- Function
- for control, shut-off, regulating
- Media
- for hot water, for cooling water, for gas, for air, for steam, for oxygen, for natural gas, for CO2, propane
- Body$
- wafer, NAMUR, carbon steel
- Applications
- for industrial applications, for the food industry, process, for liquids, for wafers, for automation
- Material$
- stainless steel
- Other characteristics
- ANSI, with integrated positioner, with I/O link, for aggressive media
- DN
Min.: 15 mm
(0.591 in)Max.: 250 mm
(9.843 in)- Pressure
Min.: 10 bar
(145 psi)Max.: 100 bar
(1,450.4 psi)- Temperature
Min.: -60 °C
(-76 °F)Max.: 350 °C
(662 °F)
Description
This control valve is used in control circuits for neutral and aggressive media in the chemicals, process engineering and plant construction industries. Positioners (pneumatic or electro-pneumatic) are used for precise control. The valve is equipped with an integrated positioner (top-mounted) as standard.
•Size:
DN 15 - DN 250
•Pressure:
PN 10-160, ANSI # 150 - 900
•Material:
Stainless steel 1.4408
Carbon steel 1.0619
•Temperature:
Media temperature up to 350 °C
Special versions available on request.
Connection:
Intermediate flange version
Positioner:
Digital positioner type 8049 with IO-Link
Accessories:
Metal bellows
Limit switch
Position feedback
. . .
