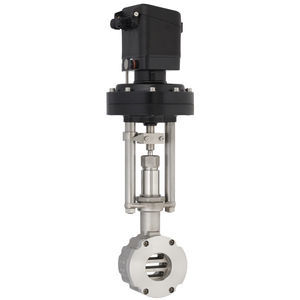

Sliding gate valve 8020 GS1
pneumatically-operatedshut-offregulating

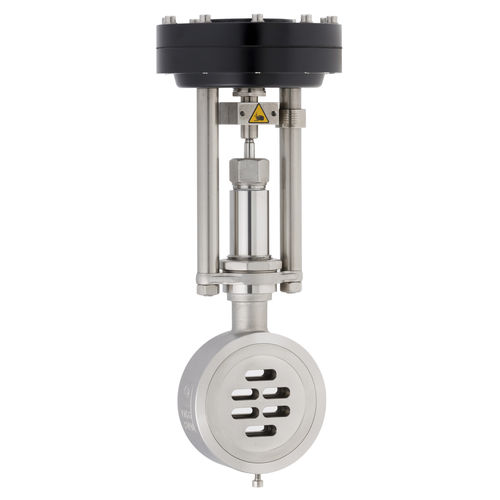

Sliding gate valve - 8020 GS1 - Schubert & Salzer Control Systems GmbH - pneumatically-operated / shut-off / regulating
Sliding gate valve - 8020 GS1 - Schubert & Salzer Control Systems GmbH - pneumatically-operated / shut-off / regulating
Add to favorites
Compare this product
Go to the Schubert & Salzer Control Systems GmbH website for more information

Characteristics

Type
sliding gate
Operation
pneumatically-operated
Function
shut-off, regulating
Media
for air, for hot water, for CO2, for liquefied natural gas, for cooling water, for chemical products, for fuel, for natural gas, petroleum, for liquefied petroleum gas, for gas, propane, for inert gases, for liquified gas, for steam, for compressed air, for oxygen, for water
Body
wafer, NAMUR
Applications
for the chemical industry, for industrial applications, for process applications, for heating systems, for liquids, for the gas industry, for wafers, for explosive areas, for dirty environments, for precision applications
Material
stainless steel, carbon steel
Number of channels
2/2-way
Fluid specification
for aggressive media, for corrosive fluids, for fluids with lubricating properties
Associated function
for filling applications
Other characteristics
ANSI, compact, ISO, DIN, normally closed, high-temperature, normally open, for high flow rates, for explosive atmospheres, IECEx, for aggressive media
DN

Max.: 150 mm
(5.906 in)

Min.: 15 mm
(0.591 in)

Pressure

Max.: 40 bar
(580.2 psi)

Min.: 0 bar
(0 psi)

Temperature

Max.: 350 °C
(662 °F)

Min.: -60 °C
(-76 °F)

Description

The sliding gate control valve type 8020 with NAMUR interface for universal positioner assembly is suitable for a wide range of process applications. Media such as steam, liquids, gases, etc. are easy to handle. For high speed and cycling applications this valve is the clear choice. •Size: DN15-DN150 •Pressure: PN10/40 •Material: Stainless steel 1.4408 Carbon steel 1.0619 •Temperature: Media temperature: -60 °C up to 350 °C Special versions available on request. Connection: Wafer type design Positioner: Pneumatic Electro-pneumatic Digital Without positioner for on/off operation Accessories: Metal bellows Limit switch Position feedback Manual override . . .
