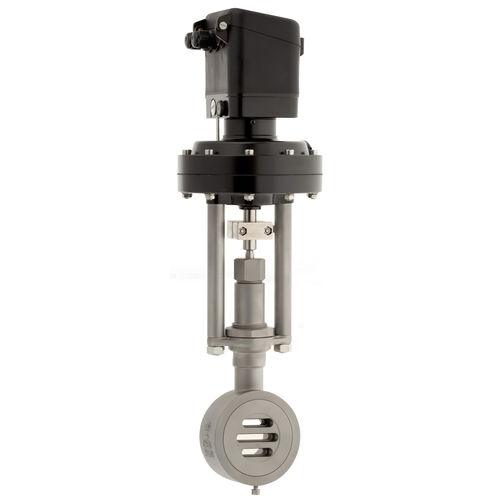

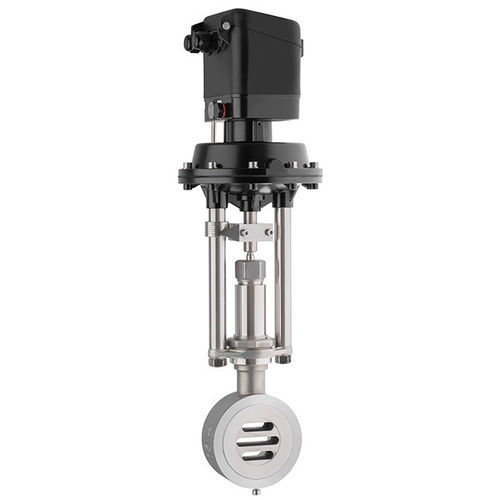

Sliding gate valve 8021 GS1pneumatically-operatedelectropneumaticshut-off
Add to favorites
Compare this product
Characteristics
- Type
- sliding gate
- Operation
- pneumatically-operated, electropneumatic
- Function
- shut-off, regulating
- Media
- for hot water, for cooling water, for gas, for air, for steam, for oxygen, for natural gas, for CO2, propane
- Body$
- wafer, NAMUR
- Applications
- for industrial applications, for the food industry, for wafers
- Material$
- stainless steel, carbon steel
- Other characteristics
- with integrated positioner, for aggressive media
- DN
Min.: 15 mm
(0.591 in)Max.: 150 mm
(5.906 in)- Pressure
Min.: 10 bar
(145 psi)Max.: 40 bar
(580.2 psi)- Temperature
Min.: -60 °C
(-76 °F)Max.: 350 °C
(662 °F)
Description
The sliding gate control valve type 8021 with integrated positioner is suitable for a wide range of process applications. Media such as steam, liquids, gases, etc. can perfectly be handled.
Size:
DN15 - DN150
Pressure:
PN 10/40
Material:
Stainless steel 1.4408
Carbon steel 1.0619
Temperature:
Media temperature: -60 °C up to 350 °C
Special versions available on request.
Connection -
Wafer type design
Positioner -
Digitaler positioner type 8049
- 2-wire, 4-wire
- Ex-Pro explosion-proof
- IO-Link
- Integrated process controller IPC
Pneumatic and electro-pneumatic positioner type 8047
- 2-wire
- Ex version
Positioner with mounting acc. to NAMUR standard
Accessories -
Metal bellows
Limit switch
Position feedback
Manual override
Pilot valve
. . .
Catalogs
Control Valve 8021
10 Pages
