Analog output wind direction sensor Wind Direction Sensor With Analog Output

analog4-20 mAIP54

Product overview

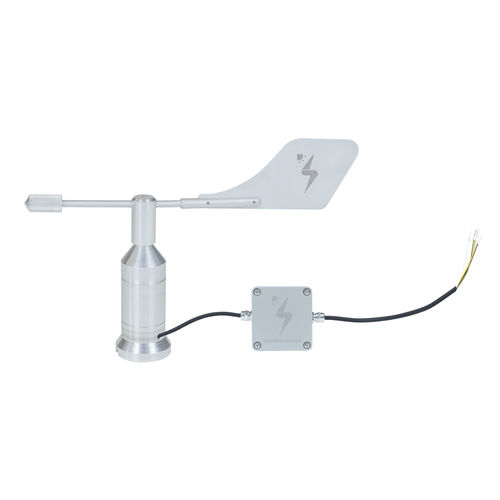

The Wind Direction Sensor 3S-WD-I-A is a professional meteorological instrument for continuous measurement of horizontal wind direction (0–359°). It comprises a robust body and an aluminum vane and provides an analog 4-20 mA output for integration with dataloggers, gateways and PLCs. Supplied with mounting accessories and a 1 m UV- and weather-resistant cable, it is suited to environmental monitoring, PV plant assessment and documentation of wind-related damages.

Features / included

• Analog 4-20 mA output for direct connection to analog inputs
• Supplied with mounting kit and 1 m UV- and weather-resistant cable (LI2Y(st)C11Y, 2x2x0.22 mm²)
• Aluminum housing and vane for long-term field use

TECHNICAL DATA
Item Code: 3S-WD-I-A
Sensor Type: Vane-driven Hall-effect position sensor
Measuring Range: 0 to 359°
Accuracy: ±1% of measured value
Resolution: 0.1°
Threshold: 1 m/s
Data Output: Analog 4-20 mA
Power Supply: 12 to 30 V DC (24 V DC recommended)
Power Consumption: Typically 30 mA @ 24 V DC
Electrical Connection: 1 m 2x2x0.22 mm² – LI2Y(st)C11Y cable, UV and weather resistant
Operating Temperature Range: -40°C to +85°C (ice free)
Dimensions: 305 mm x 185 mm
Box Dimensions: 80 x 82 x 55 mm (W x L x H)
Weight: 0.45 kg
Box Weight: 0.25 kg
IP Rating: IP54
Housing Material: Aluminum
Vane Material: Aluminum
Box Material: ABS
Mounting Method: Pipe or ground mounting
Standard: Compliant to IEC 61724-1:2021

Features / technical specifications

• Item Code: 3S-WD-I-A
• Vane-driven Hall-effect position sensor
• Measuring range 0–359°; resolution 0.1°; accuracy ±1%
• Analog 4-20 mA output; compatible with dataloggers, gateways, PLCs
• Power 12–30 V DC (24 V recommended); typical consumption 30 mA @ 24 V
• 1 m UV- and weather-resistant cable (LI2Y(st)C11Y)
• Operating range -40°C to +85°C; IP54
• Aluminum housing and vane; ABS junction box
• Pipe or ground mounting; compliant with IEC 61724-1:2021
