Analog wind direction sensor 3S-WD-A

IP65maintenance-freeIP54

Product Overview

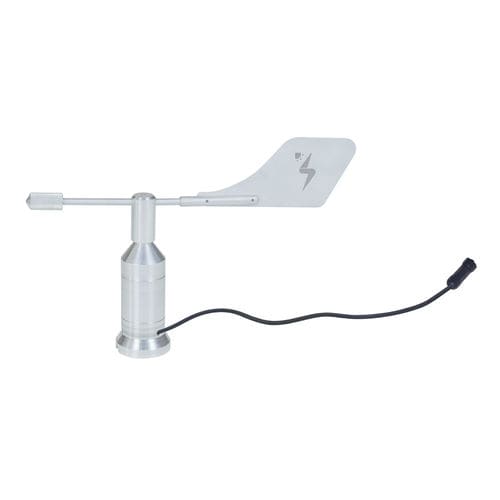

The 3S-WD-A Wind Direction Sensor is a professional meteorological instrument for measuring horizontal wind direction. It uses a vane-driven Hall Effect position sensor and provides an analog output (0–3.3 V). The sensor can be connected to SEVEN’s irradiance sensors, sensor boxes and compact weather stations via a pin connector.

Application Note
For photovoltaic and industrial sites, wind direction affects convective heat transfer and array performance. Wind characteristics vary by site and orientation; measuring direction helps assess plant behaviour under different wind conditions and optimises layout and monitoring strategies.

Installation
Verify operation at ground level before final mounting to ensure each component functions correctly. The plug & run connector simplifies commissioning and reduces wiring errors. Two mounting options are available:

• Pipe mounting
• Ground mounting

Why choose the SEVEN Aluminium Wind Direction Sensor?

• High accuracy: Delivers consistent wind direction readings with minimal variation for reliable datasets.
• Durable aluminium construction: Anodized aluminium housing and vane for corrosion resistance, including seawater exposure.
• Low maintenance: Designed to withstand dust, strong winds and outdoor conditions with minimal upkeep.
• Integration ready: Compatible with SCADA, dataloggers, inverters and standard industrial systems.
• Cost-effective: Suited to industrial and environmental applications such as PV plants with a favourable price/performance ratio.

Frequently Asked Questions (FAQ)

• Standards compliance: Model 3S-WD-A is compliant with IEC 61724-1:2021 for PV monitoring applications.
• Includes cable: Supplied with 3 m 2x2x0,22 mm² LI2YC11Y-TP cable, UV and weather resistant.
• Mounting options: Pipe or ground mounting.
• Warranty: 2-year warranty covering materials and workmanship defects.
• Delivery times:
  • Small orders: approx. 1–2 weeks
  • Bulk orders (100 pcs): approx. 4–5 weeks
• Price: Typical price range: 195–350 EUR.

Technical specifications

• Item Code: 3S-WD-A
• Sensor Type: Vane-driven Hall Effect Position Sensor
• Measuring Range: 0–359°
• Accuracy: ±1% of measuring value
• Resolution: 0.1°
• Start Speed: 1 m/s
• Data Output: Analog (0 V – 3.3 V)
• Cable Length & Features: 3 m 2x2x0,22 mm² – LI2YC11Y-TP, UV and weather resistant
• Operating Temperature Range: -40°C … +85°C (ice free)
• Dimensions: Ø 305 mm x 185 mm
• Weight: 0.34 kg
• IP Rating: IP54 (IP65 optional)
• Housing Material: Aluminium
• Vane Material: Aluminium
• Mounting Method: Pipe or ground mounting
• Standard: Compliant with IEC 61724-1:2021
