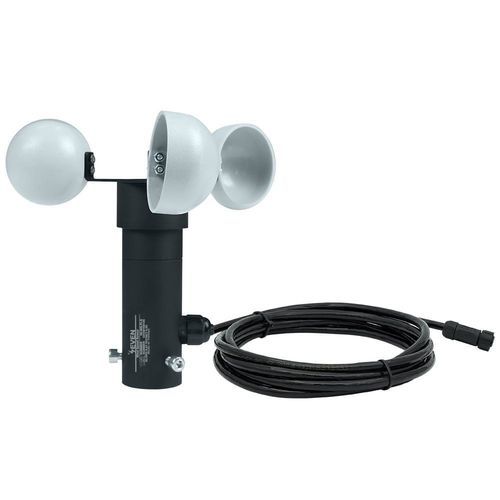

Cup anemometer 3S-WS-PLS-A

IP66IP54maintenance-free

Product overview

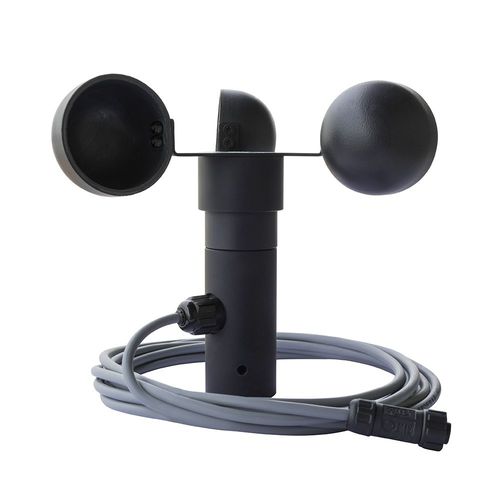

Wind speed sensor (cup anemometer) measuring horizontal wind speed in m/s by converting mechanical rotation into an electrical pulse via a reed switch driven by a rotating magnet attached to wind cups. Housed in seawater-resistant anodized aluminum and supplied with a mounting bracket and 3 m UV- and weather-resistant LIYY cable. Compatible with SEVEN Irradiance Sensor Box and SEVEN Sensor Box; data can be transmitted to an irradiance sensor or a data logger over a single cable.

Key features

• Compact cup anemometer with reed switch (pulse output)
• Seawater-resistant anodized aluminum housing
• High sensitivity: low threshold and fine resolution
• Weather-resistant design (standard IP54; optional IP66 model available)
• Factory calibrated and tested
• Low maintenance thanks to enclosed housing and simple mechanical design

Technical specifications
Item Code: 3S-WS-PLS-A
Sensor Type: Cup anemometer (reed switch)
Measuring Range: 0.9 to 60 m/s
Accuracy: Below 5 m/s: 0.5 m/s; above 5 m/s: 10% of reading
Resolution: 0.1 m/s
Threshold (start speed): 0.9 m/s
Survival Speed: 60 m/s
Data Output: Reed switch (pulse output)
Cable: 3 m LIYY, UV- and weather-resistant
Operating Temperature: -40°C to +85°C (ice free)
Dimensions: Ø 180 × 145 mm
Weight: 0.34 kg
Body Material: Anodized aluminum
Cup Material: ABS
Mounting: Pipe or ground mounting
Standard: Compliant with IEC 61724-1:2021

Installation
Supports pipe mounting and ground mounting. Mounting accessories are supplied. Follow the product user manual for step-by-step installation and configuration instructions.

FAQ (selected)

• Warranty: 2-year warranty for the 3S-WS-PLS-A sensor.
• Price range: Indicative price between 130 and 230 EUR.
• Delivery times:
  • Small orders: approx. 1–2 weeks
  • Bulk orders (100 pcs): approx. 4–5 weeks
• Cable: Each unit includes a 3 m LIYY cable (UV- and weather-resistant); other lengths available on request.

Technical data / Specifications

• Model: 3S-WS-PLS-A
• Sensor type: Cup anemometer with reed switch (pulse output)
• Measuring range: 0.9–60 m/s
• Resolution: 0.1 m/s
• Threshold: 0.9 m/s
• Accuracy: 0.5 m/s below 5 m/s; 10% above 5 m/s
• Survival speed: 60 m/s
• Materials: Anodized aluminum body, ABS cups
• Cable: 3 m LIYY, UV- and weather-resistant
• Operating temperature: -40°C to +85°C (ice free)
• Dimensions: Ø 180 × 145 mm
• Weight: 0.34 kg
• Mounting: Pipe or ground mounting
• Standard: IEC 61724-1:2021
