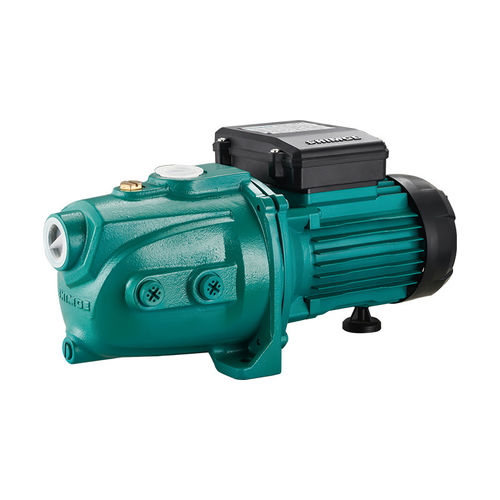

Water pump PJ series

electricself-primingimpeller

Self-Priming JET Pumps PJ Model:PJ The following is about Self-Priming JET Pumps PJ related PJ, I hope to help you better understand Self-Priming JET Pumps PJ. Self-Priming JET Pumps PJ Application Limits ◎ Medium temperature: No higher than 40℃ ◎ Ambient temperature: No higher than 40℃ ◎ Working pressure of system: 4.5bar ◎Voltage fluctuation: No more than ±10% of the rating. Certificate Application Fields ◎ Injection pumps of PJ series, featured by small flow, high pressure, and strong self-priming, can be widely applied to water-intake way for rural familiesliving, garden irrigation,pressurization for tap water, and well water pumping. Features ◎ NSK bearing; ◎ F-grade motor Motor ◎ Pump body: Cast iron; ◎ Impeller/guide vane/injector: PPO ◎ Pump cover: 304 stainless steel; ◎ Mechanical seal: Ceramic/graphite/nitrile rubber; ◎ Motor: Two-step asynchronous motor; copper coil; integrated thermal protector; closed fan cooling; continuous operation; ◎ Level of protection: IPX4; ◎ Insulation grade: B.
