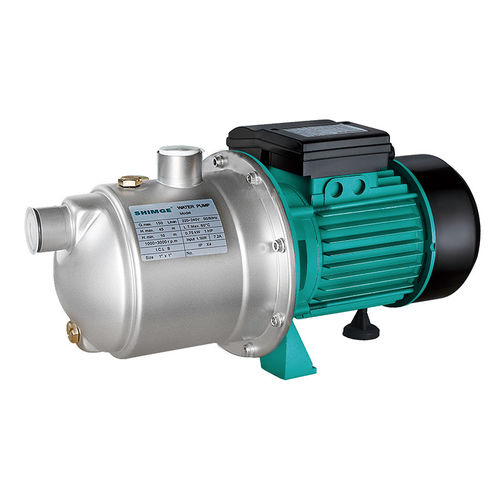

Centrifugal pump PXM series

waterelectricself-priming

Centrifugal Pumps PXM Model:PXM The following is about Centrifugal Pumps PXM related PXM, I hope to help you better understand Centrifugal Pumps PXM. Centrifugal Pumps PXM Application Limits ◎ Suction head up to 7m ◎ Liquid temperature up to +40℃ ◎ Ambient temperature up to +40℃ ◎ Max. Working pressure: 4.8bar ◎ Voltage fluctuation should not exceed 10% of rated value. ◎ pH: 6.5 to 8.5 Application Fields ◎ Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water. ◎ Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc. Basic Configuration ◎ Mechanical sealing: ceramic / graphite / NBR rubber ◎ Motor: two asynchronous motors, copper coils, built- in thermal protection, all closed fan-cooled, continuous operation ◎ Protection: IP44 ◎ Insulation class: B Optional Available On Request (* Standard configuration on Page 44) ◎ NSK bearing ◎ Motor whose insulation class is F
