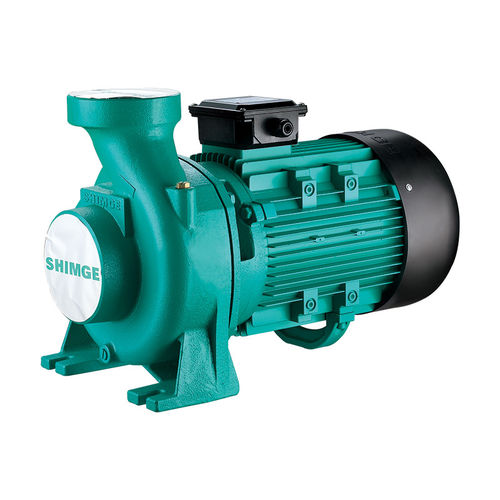

Water pump SHF(M)

electricself-primingcentrifugal

Centrifugal Pumps SHF(M) Model:SHF(m) The following is about Centrifugal Pumps SHF(m) related SHF, I hope to help you better understand Centrifugal Pumps SHF(m). Centrifugal Pumps SHF(M) Application Limits ◎ Suction head up to 7m ◎ Liquid temperature up to +40℃ ◎ Ambient temperature up to +40℃ ◎ Max. Working pressure: 3bar ◎ Voltage fluctuation should not exceed 10% of rated value. ◎ pH: 6.5 to 8.5 Application Fields ◎ Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water. ◎ Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc. Features ◎ Large flow, high efficiency ◎ Compact structure, easy to install Motor ◎ Single-Phase 220V/50Hz ◎ Three-Phase 380V/50Hz ◎ Mechanical seal: Ceramic/Graphite/NBR rubber ◎ Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running ◎ Protection: IP44 ◎ Insulation: Class B
