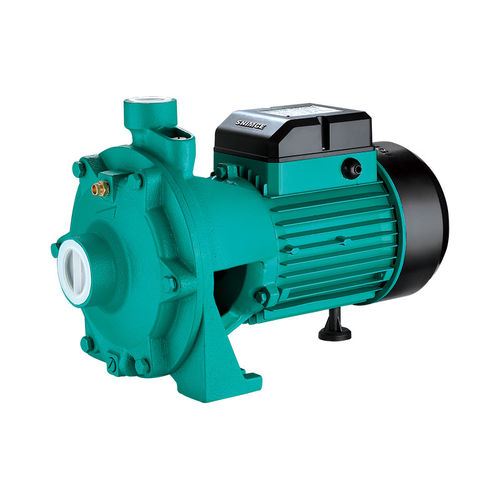

Centrifugal pump 2SGP(M) series
waterelectricself-priming

Centrifugal pump - 2SGP(M) series - Shimge Pump Industry (Zhejiang) Co.,Ltd - water / electric / self-priming
Centrifugal pump - 2SGP(M) series - Shimge Pump Industry (Zhejiang) Co.,Ltd - water / electric / self-priming
Add to favorites
Compare this product

Characteristics

Technology
centrifugal
Fluid
water
Operation
electric
Priming
self-priming
Mobility
stationary, mobile
Domain
industrial
Applications
cooling, irrigation, drainage, suction
Material
ceramic
Other characteristics
compact, mechanical, double, built-in, seal
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 12 m³/h
(423.776 ft³/h)

Pressure

Min.: 0 bar
(0 psi)

Max.: 5 bar
(72.519 psi)

Head

Min.: 0 m
(0'00" )

Max.: 50 m
(164'00" )

Power

0.75 kW, 1.1 kW, 1.5 kW
(1.02 hp, 1.5 hp, 2.04 hp)

Fluid temperature

Min.: 0 °C
(32 °F)

Max.: 40 °C
(104 °F)

Description

Centrifugal Pumps 2SGP(M) Model:2SGP(m) The following is about Centrifugal Pumps 2SGP(m) related 2SGP, I hope to help you better understand Centrifugal Pumps 2SGP(m). Centrifugal Pumps 2SGP(M) Application Limits ◎ Suction head up to 8m ◎ Liquid temperature up to +40℃ ◎ Ambient temperature up to +40℃ ◎ Max. Working pressure: 5bar ◎ Voltage fluctuation should not exceed 10% of rated value. ◎ pH: 6.5 to 8.5 Application Fields ◎ Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water. ◎ Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc. Features ◎ Double impeller centrifugal pump, satisfies the requirement of high head. ◎ Compact structure Motor ◎ Single-Phase 220V/50Hz ◎ Three-Phase 380V/50Hz ◎ Mechanical seal: Ceramic/Graphite/NBR rubber ◎ Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running ◎ Protection: IP44
