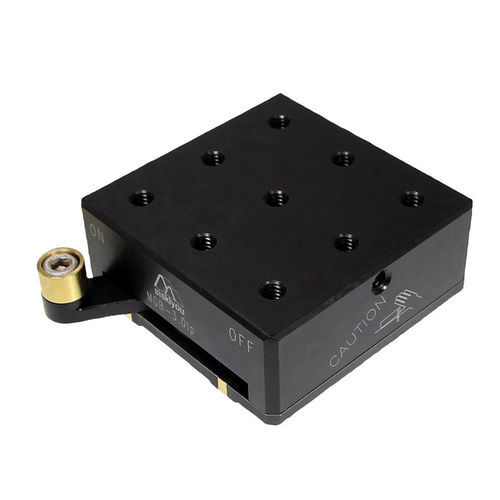

Switch magnetic base MGB-3.0lp

The MGB-3.0lp magnetic base is designed to be used as a stable mounting platform for isolation tables lacking mounting holes, or on any magnetic surface. The magnetic field of the MGB-3.0lp is activated through a 60° rotation of a manual lever that is clearly marked ON and OFF. The MGB-3.0lp's 3.0-inch x 3.0-inch mounting surface is the perfect match for mounting 331 stages, 831 stages, MX312P platforms, or MX3T tilt platforms. It is also compatible with MX-AP series top adapter plates, which allow the experimenter to remove and replace equipment accurately and simply by loosening two flathead screws.

Product Features

• 1/4-20(M6) tapped surface
• 3.0-inch low profile
• Low profile design
• Solid holding force

Performance Specifications

• Holding force: 50 lbs

Characteristics / Technical Specifications

• Product type: Magnetic base
• Mounting surface: 3.0 inch x 3.0 inch
• Activation: 60° manual lever (ON/OFF)
• Compatible with: 331 stages, 831 stages, MX312P platforms, MX3T tilt platforms, MX-AP series top adapter plates
• Thread type: 1/4-20 (M6) tapped surface
• Low profile: Yes
• Holding force: 50 lbs
• SKU: 09870000
