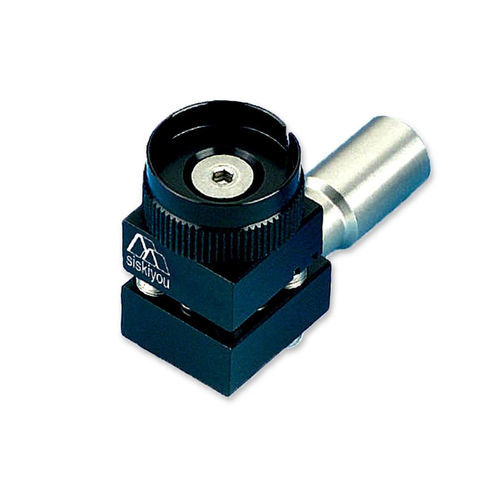

Heavy duty mounting bracket RM80

The RM80 Series Mount is an ultra-stable miniature version of the RM series mirror mounts, designed for precision and stability in optical setups. Available in 0.75-inch and 0.50-inch models, these mounts utilize the same precision 80TPI adjustment screws as the larger RM series, ensuring stable movement and fine adjustment. Adjustment is performed using a 5/64 hex wrench, which minimizes inadvertent movement by eliminating the need for two finger-adjusted control knobs in close proximity.

Product Features

• 80 pitch adjustment screws
• Hex adjustment
• Vertical or horizontal mounting
• Vacuum compatible versions available upon request

Performance Specifications

• Choose options to see performance specifications and downloads.

Characteristics / Technical Specifications

• Product type: Kinematic mirror mount
• Available optic sizes: 0.50 inch, 0.75 inch
• Adjustment method: 5/64 hex wrench
• Mounting orientation: Vertical or horizontal
• Adjustment screw pitch: 80 TPI
• Vacuum compatibility: Available upon request
