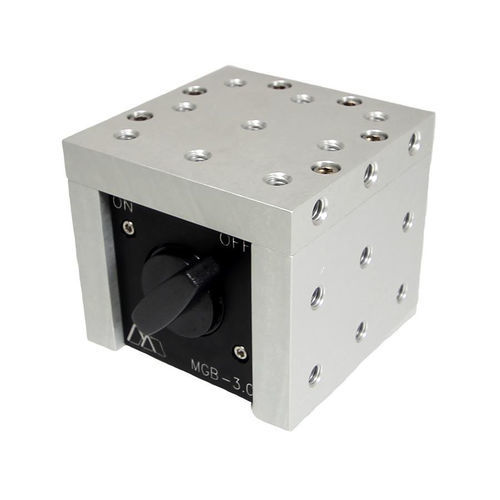

Switch magnetic base MGB-3.0

The MGB-3.0 magnetic base is designed to be used as a stable mounting platform for isolation tables lacking mounting holes, or on any magnetic surface. The 3.0-inch x 3.0-inch footprint provides greater surface area and enhanced stability compared to similar magnetic bases. The magnetic field of the MGB-3.0 is activated through a 45° rotation of a manual lever that is clearly marked ON and OFF. The 3.0-inch x 3.0-inch mounting surface is ideal for mounting 331 stages, 831 stages, MX312P platforms, or MX3T tilt platforms. Three sides of the magnetic base feature nine 1/4-20 mounting holes for added attachment flexibility.

Product Features

• Multiple mounting surfaces
• 3.0 inch footprint
• Simple on/off lever
• Solid holding force

Performance Specifications

• Holding force: 70 lbs

Characteristics / Technical Specifications

• Product type: Magnetic base
• Footprint: 3.0 inch x 3.0 inch
• Mounting holes: Nine 1/4-20 holes on three sides
• Magnetic activation: 45° manual lever (ON/OFF)
• Recommended for: Isolation tables without mounting holes, any magnetic surface
• Compatible with: 331 stages, 831 stages, MX312P platforms, MX3T tilt platforms
• SKU: 09330000
