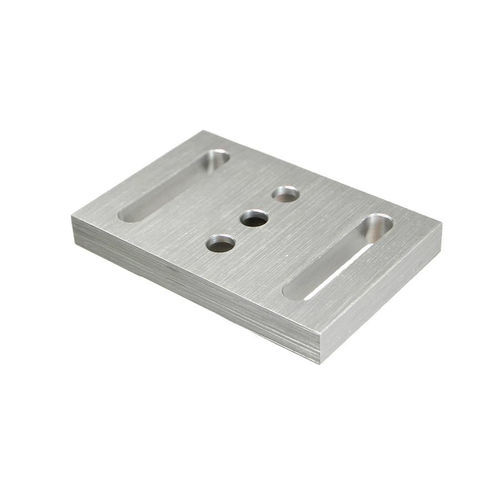

Mounting plate ABP-T2

The ABP-T series translation base plates are designed to mount PRH series precision rod holders and AS series spacers. These simple designs enable the user to place these or other devices in many locations on the mounting surface. The ABP-T series translation bases are a cost-effective alternative to having expensive machine shops build one-off adapter/interface plates.

Product Features

• Coarse X- or Y-axis positioning
• 1/4-20(M6) interfaces
• Aluminum base plate, 2.0 inch travel
• Vacuum compatible versions available upon request

Characteristics / Technical Specifications

• Series: ABP-T
• Model: ABP-T2
• Material: Aluminum
• Travel: 2.0 inch
• Interfaces: 1/4-20 (M6)
• Compatible with PRH series precision rod holders and AS series spacers
• Coarse X- or Y-axis positioning
• Vacuum compatible versions available upon request
• SKU: 09060000
