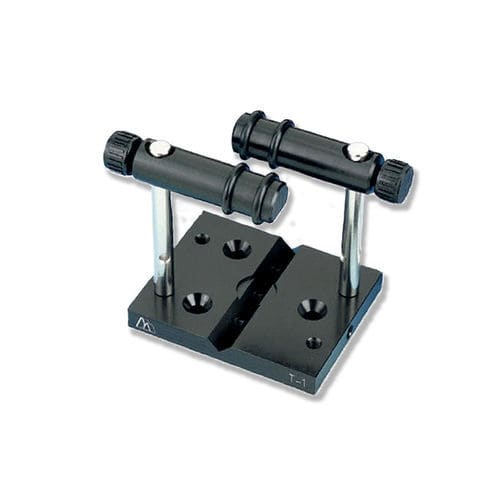

Mounting plate T-1

The T-1 prism table is designed to mount prisms and beamsplitter cubes to IM100.T2 mirror mounts. This versatile design incorporates T1-C clamps with a self-aligning V-groove and O-ring pads to ensure secure, damage-free holding. The T-1 prism table features a variety of 8-32 mounting holes for fixed vertical or horizontal optic mounting.

Product Features

• Compatible with RM and IM series mounts
• Adjustable non-marring optic clamps
• Centering V-groove
• Vacuum compatible versions available upon request

Characteristics / Technical Specifications

• Product type: Prism mount table for IM100.P2
• Mounting: 8-32 mounting holes for vertical or horizontal optic mounting
• Clamps: T1-C clamps with self-aligning V-groove and O-ring pads
• SKU: 89020000
• Compatible mounts: RM and IM series
• Adjustability: Adjustable, non-marring optic clamps
• Vacuum compatibility: Available upon request
