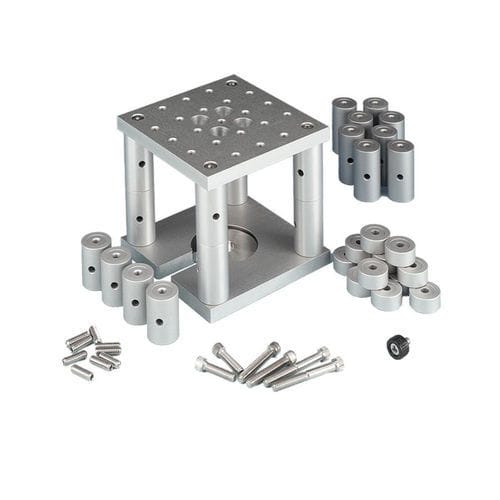

Mounting plate MX_12P Tower

The MX_12P Tower is a versatile platform designed for mounting a variety of hardware at any level on an isolation table or platform. It is ideal for research microscopes, allowing the platform height to be positioned at the center of the depth of focus. A complete set of AS series spacers enables flexible vertical adjustment from 2.5 to 12.0 inches in 0.5 inch increments, while metric configurations adjust from 65 to 310 mm using a combination of spacers.

Product Features

• 2.5- to 12-inch vertical adjustability
• Solid aluminum construction
• Flexible mounting design
• Vacuum compatible versions available upon request

Characteristics / Technical Specifications

• SKU: MX 12P TOWER
• Available lengths: 3.0 in, 5.0 in
• Available width of platform: 3.0 in, 5.0 in
• Available width: 3.0 in, 5.0 in
• Unit of measure (UOM): IMPERIAL, METRIC
• Vertical adjustment range: 2.5 to 12.0 inches (0.5 inch increments) or 65 to 310 mm (metric)
• Material: Solid aluminum
