Mounting plate MX-APC

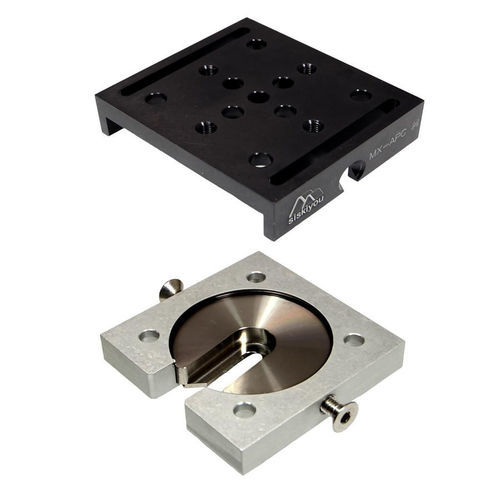

The MX-AP series adapter plates are specifically designed to speed up the cumbersome mounting and unmounting of translation stages stacked in an XY configuration. With the MX-AP series, it is no longer necessary to disassemble stacked stages to access the mounting screws of the lower stage. The XY stage is mounted to the MX-AP series top plate with four cap screws and the MX-AP series top plate is clamped to its base plate with two flathead Allen screws. MX-AP series adapter plates come in two styles. The MX-APC top plate has nine clearance holes for 1/4-20 (M6) cap screws and four holes tapped 1/4-20 (M6). The MX-APT top plate has nine holes tapped 1/4-20 (M6). The base plate is equipped with a unique hold down pivot that allows secure single-bolt mounting anywhere on an experimental table.

Product Features

• Solid locking mechanism
• Flexible mounting design
• Vacuum compatible versions available upon request

Caractéristiques / spécifications techniques

• Product type: Adapter plate for translation stages
• Configuration: Designed for XY stacked stages
• Top plate mounting: Four cap screws
• Top plate to base plate attachment: Two flathead Allen screws
• MX-APC top plate: Nine clearance holes for 1/4-20 (M6) cap screws, four holes tapped 1/4-20 (M6)
• MX-APT top plate: Nine holes tapped 1/4-20 (M6)
• Base plate: Unique hold down pivot for single-bolt mounting
• Vacuum compatibility: Available upon request
