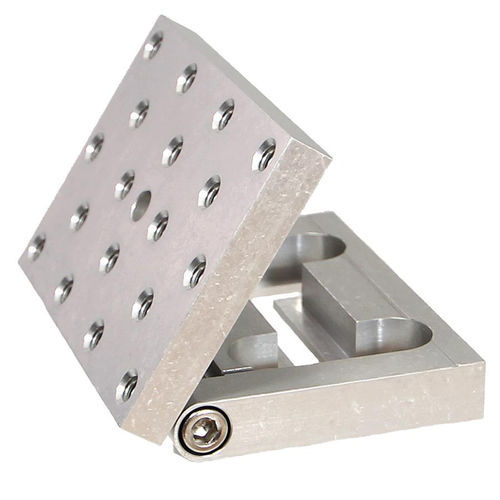

Mounting plate MXTa

The MXTa Series Platform is an adjustable angle/tilt bracket designed for flexible mounting and precise positioning in laboratory and industrial environments. Available in three convenient sizes (Small, Medium, Large), these platforms are constructed from solid aluminum for durability and stability. The platform attaches to a table top or breadboard using a single 1/4-20 cap screw through a recessed slot, allowing for maximum positioning flexibility. Angular locking is achieved with a single cap screw, which can be removed and relocated 180° to the opposite side for adjustments in limited space locations. The platform is shipped in a "positive" vertical configuration but can be reassembled for a "negative" vertical configuration by removing the locking screw and rotating the mounting platform.

Product Features

• Unlimited angular adjustment
• Solid aluminum construction
• Flexible mounting design
• Vacuum compatible versions available upon request

Performance Specifications

• Maximum load: 5 lbs
• Angular adjustment: Unlimited

Available Options

• Sizes: Small, Medium, Large
• Units of Measure: Imperial, Metric

Characteristics / Technical Specifications

• SKU: MXTA SERIES
• Sizes available: Small, Medium, Large
• Units of Measure: Imperial, Metric
• Volume: 0.000000
• Weight Unit of Measure: LB
