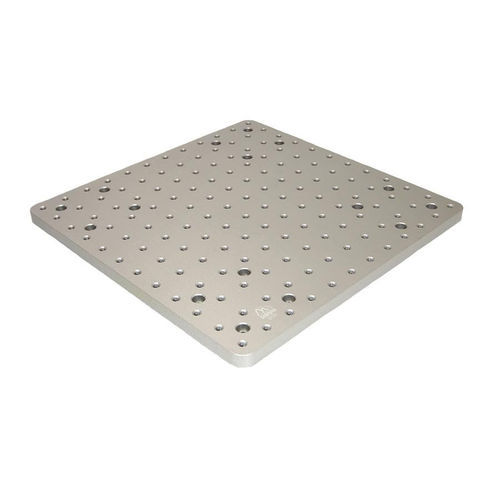

Mounting plate ALU PLATFORM

The Rectangular Aluminum Platform is engineered for maximum flexibility and machinability, offering a robust and affordable mounting surface for laboratory and industrial applications. Available in nine different sizes, these solid aluminum platforms can be used as stand-alone units on table tops or to add attachment points to isolation tables lacking tapped holes. They are also ideal for constructing bridge systems around microscopes and can be supported using PSR series support posts or AS series spacers. The 1200 series features 1/4-20(M6) clearance holes positioned near the plate edge for easy mounting to PSR and AS series components. For more complex setups, vertical or three-dimensional configurations can be achieved with BB series building blocks and the AB-U universal angle bracket.

Product Features

• Stable cast aluminum plate
• Pre-drilled / threaded 1/4-20(M6) mounting surface
• Vacuum compatible versions available

Characteristics / Technical Specifications

• SKU: ALU PLATFORM
• Available Lengths: 4.0in, 12.0in, 18.0in, 24.0in, 30.0in
• Available Widths: 8.0in, 12.0in, 18.0in, 24.0in, 30.0in
• Unit of Measure (UOM): IMPERIAL, METRIC
• Volume: 0.000000
• Weight Unit of Measure: LB
