Alignment clamp RTC

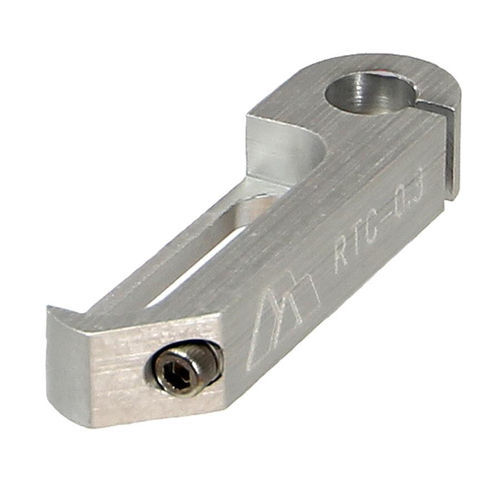

The RTC-Series is a unique rotation/translation clamp designed for precise positioning and secure mounting of rods and devices in laboratory setups. This low profile clamp features separate lock screws for each axis, allowing independent adjustment of rotation and translation. It is engineered to hold PR or MPR series rods and can be positioned anywhere on the mounting surface. A dedicated mounting screw enables users to fix the device in place and then fine-tune its rotational alignment using the clamp lock screw. For horizontal applications, the RTC-0.5 can be mounted to the vertical surface of BB-1.0 or BB-5.0 bases. The RTC-0.5 is ideal for mounting a wide range of mechanical or electronic devices. The RTC-A series adapters are available in 8-32 tapped or clearance, and 1/4-20 tapped or clearance, supplied in packages of 3. These adapters facilitate mounting of any device with the appropriate mounting hole to the RTC-0.5. For example, attaching an RTC-A3 to the base of a DT100-3 allows assembly of a low profile manipulator that can be easily attached to a microscope platform.

Product Features

• Unique design
• Low profile
• 1/4-20 and 8-32 adapters
• Vacuum compatible versions available

Characteristics / Technical Specifications

• Separate lock screws for rotation and translation axes
• Compatible with PR or MPR series rods
• Mountable on various surfaces, including BB-1.0 or BB-5.0 vertical surfaces
• Adapters available: 8-32 tapped/clearance, 1/4-20 tapped/clearance (RTC-A series)
• Adapter packages: sets of 3
• Ideal for mounting mechanical or electronic devices
• Can be used to assemble low profile manipulators for microscope platforms
• Diameter options: .312in, .50in
• Unit of measure options: METRIC, IMPERIAL
