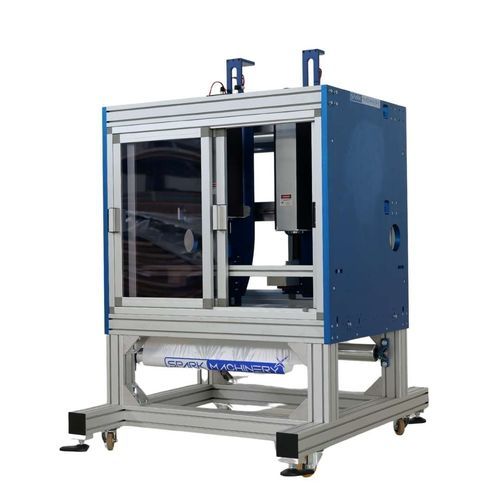

Plastic film microperforating unit LO-S40

This equipment is designed to make MICRO HOLES through laser sources on moving films of various materials and thicknesses and is to be inserted as a host unit in film processing lines, such as in slitters, extruders, packaging machines, printing and welding machines. The LO-S 40 ensures perfect micro holes even on multi-layer, single or bi-oriented laminated materials. With the holes made by this unit, it is possible to control air exchange with the outside of the packages and induce CONTROLLED PERMEABILITY, thus increasing the SHELF LIFE of all fresh products. This procedure is widely used in food packages for IV and V RANGE, MAP and EMAP packages. Through the use of of mirrors, this laser model makes it possible to make LONGITUDINAL AND CROSS PRE-CUTS, SCORING and MICRO-HOLES, and making SMALL SHAPES AND LOGOS on small surfaces. The running film, held in perfect tension by the idler rollers, arrives at the device and is perforated by the CO2 LASER through the emission of BEAMS OF LIGHT WITH INFRARED FREQUENCY. These beams are "combed" and expanded through the beam expander, and their direction is controlled and directed through the use of MOTORIZED MIRRORS. Finally, the beams of light are focused on a circumscribed surface of the film by means of a FOCUSING LENS. Micro-perforation is achieved by sublimation of the material, caused by the heat of the laser beam.
