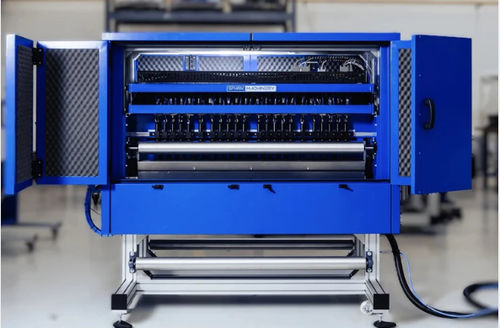

Plastic film perforating machine PU30

in-line

This equipment is designed to punch macro holes of various diameters and shapes on moving materials; it is particularly suitable for neutral or printed film and is to be installed as a host unit in film transport lines such as slitters, extruders, printing or welding machines. The PU 30 model is a fast and stable machine, with an operating system designed for 4.0 certification and developed in the language of the country where it will operate. Intuitive and user friendly electronic system allows the control of power and position for each individual perforation tool, start and stop functions, control of the lower beam opening and management of work recipes (insertion, storage and recall). The maximum operating speed achieved by the unit is 250 mt/min, with a maximum frequency of 45 Hz. Please note that this value is influenced by the composition of the material to be perforated and the distance between the holes, and that the best performance of the device is achieved by installing the punching unit in the continuous motion phase of the host line. a female body housing the die, located at the bottom and designed to accommodate the suction tube that facilitates the removal of processing waste a male body housing the punch, placed on top and connected to the solenoid valve. The incoming material passes into the space between the beams and is punched by perforation tools, mounted on one side of the structure, through a pneumatically driven die and punch system.
