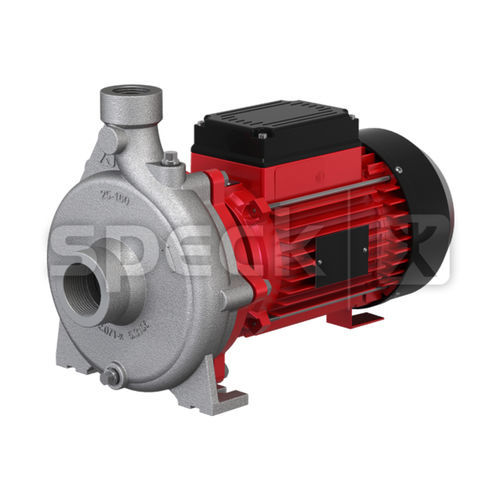

Water pump MU serieswith electric motorself-primingcentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial
- Applications
- control
- Other characteristics
- compact, suction, mechanical
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 20 m³/h
(706.29333 ft³/h)- Head
Min.: 0 m
(0'00" )Max.: 90 m
(295'03" )- Power
Min.: 0.6 kW
(0.82 hp)Max.: 4 kW
(5.44 hp)- Fluid temperature
140 °C, 160 °C
(284 °F, 320 °F)- Length
315 mm, 436 mm
(12 in, 17 in)- Width
170 mm, 245 mm
(6.69 in, 9.65 in)- Height
230 mm, 305 mm
(9.06 in, 12.01 in)- Weight
Min.: 13 kg
(28.66 lb)Max.: 40 kg
(88.18 lb)
Description
Material design
Spheroidal graphite cast iron
Suction connection
G 1 1/2
Pressure connection
G 1
Sealing
Mechanical seal
Applications
Temperature control / Industrial cooling
Tempering of tool moulds
Advantages
Compact design
Easy assembly
