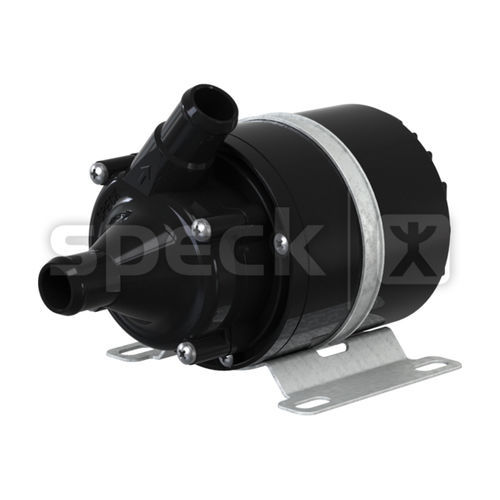

Water pump MY-3-MMwith electric motorcanned motorstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- with electric motor
- Technology
- canned motor
- Mobility
- stationary
- Domain
- industrial
- Applications
- control, service
- Voltage
- 24 V
- Other characteristics
- compact, suction, close-coupled
- Flow
Max.: 100 m³/h
(3,531.46667 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 14 m
(45'11" )Min.: 0 m
(0'00" )- Power
180 W
(0.24 hp)- Fluid temperature
Max.: 80 °C
(176 °F)Min.: 0 °C
(32 °F)- Length
154 mm, 161 mm
(6 in, 6 in)- Width
88 mm
(3.46 in)- Height
104 mm
(4.09 in)- Weight
1.6 kg
(3.53 lb)
Description
Close-coupled pumps with ec motor
Canned motor
Parameters set by the manufacturer
Power consumption depending on load and speed
Within the displayed characteristic curve, every operating point can be selected by parameterizing the drive accordingly
Material design
Plastics
Suction connection
ø 20 / 28 mm
Pressure connection
ø 20 / 28 mm
Sealing
Separating can / Canned motor
Applications
Vehicles construction / Automotive
Air-conditioning of passenger compartment in trucks and buses
Air-conditioning of passenger compartment in vehicles with fuel cell power plants
Temperature control / Industrial cooling
Delivery of cold brine
Advantages
Compact design
Long service life due to sealless version and bearingless motor
