Brushless wheel motor iWMC05606
DC24 V48 V

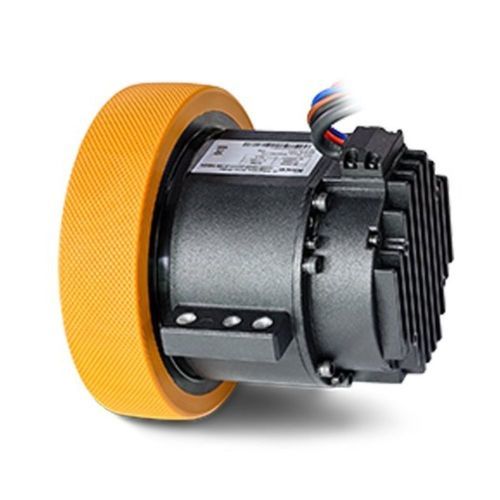

Brushless wheel motor - iWMC05606 - Suzhou Honpine Precision Industry Co., Ltd. - DC / 24 V / 48 V
Brushless wheel motor - iWMC05606 - Suzhou Honpine Precision Industry Co., Ltd. - DC / 24 V / 48 V
Brushless wheel motor - iWMC05606 - Suzhou Honpine Precision Industry Co., Ltd. - DC / 24 V / 48 V - image - 2
Add to favorites
Compare this product
Go to the Suzhou Honpine Precision Industry Co., Ltd. website for more information

Characteristics

Type
DC, brushless
Voltage
48 V, 24 V
Configuration
with brake, with integrated driver and coder, compact, frameless
Applications
industrial, for drive systems, for AGV, for robotics, for delivery robot, for autonomous mobile robot, for AMR, for medical applications
Other characteristics
with built-in encoder, direct-drive, integrated-drive, with control system, with integrated controller, servo-driven, motor design, CANopen, RS-485, with integrated motion controller, with built-in electronics, high-precision, precision, low-noise, closed-loop, with speed controller, high-efficiency, high-torque, motion control, high-speed
Power

Min.: 0.2 kW
(0.27 hp)

Max.: 1.05 kW
(1.43 hp)

Intensity

Min.: 7 A

Max.: 25 A

Torque

Min.: 3.6 Nm
(2.655224 ft.lb)

Max.: 40 Nm
(29.502486 ft.lb)

Rotational speed

Min.: 2,000 rpm
(12,566.3706 rad.min-1)

Max.: 3,000 rpm
(18,849.5559 rad.min-1)

Diameter

Min.: 150 mm
(5.91 in)

Max.: 180 mm
(7.09 in)

Description

Introduction
The AGV wheel motor (Hub Servo Motor) is a highly integrated electromechanical drive module combining a planetary gearbox, servo motor, brake, encoder, drive controller and wheel assembly into a compact unit. A frameless torque motor directly drives the wheel, replacing the conventional motor + reducer + wheel arrangement and enabling high-precision motion control. The product is designed for AGVs, AMRs and industrial automation systems in warehouse logistics and smart manufacturing to support efficient material handling and complex operating scenarios.

Application
  • Automated Guided Vehicles (AGVs)
  • Autonomous Mobile Robots (AMRs)
  • Industrial automation equipment for warehouse logistics and smart manufacturing

Features
  • High integration: Integrates drive, motor, planetary reducer and wheel in one compact module for vehicle miniaturization.
  • Precision installation: Bracket-mounted design for simple, repeatable installation and improved motion control accuracy.
  • Enhanced reliability: Integrated module with only power/communication cables exposed; improved EMI resistance and system stability.
  • Seamless compatibility: Uses identical communication protocols and operational methods to standard Kinco products for easy replacement.
  • Expandable: Compatible with various mobile-robot chassis designs and supports functional extensions.
  • Service-friendly: Single-source supply simplifies after-sales service and supply-chain management.
